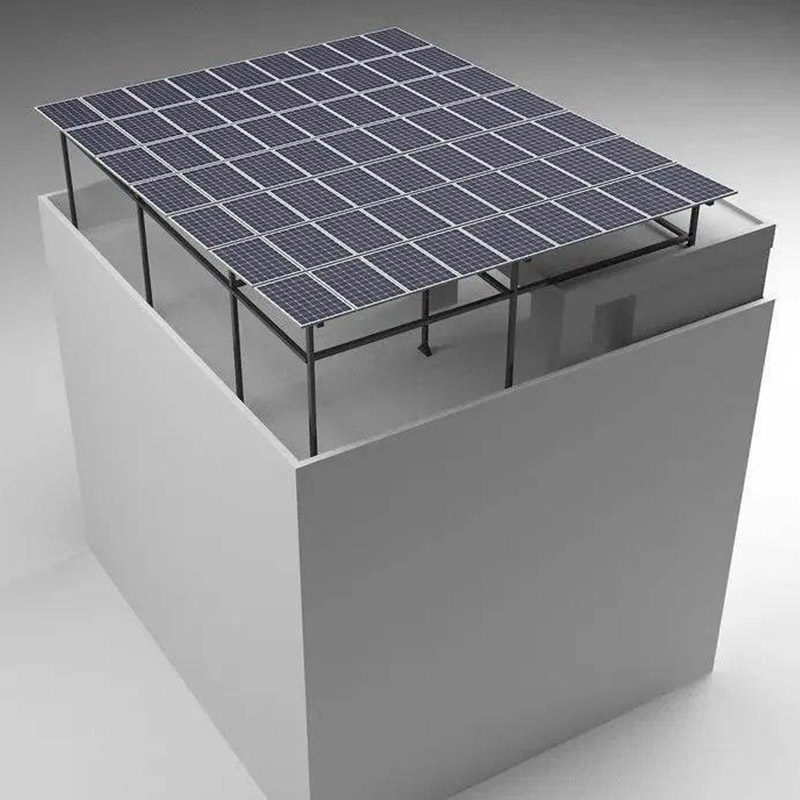

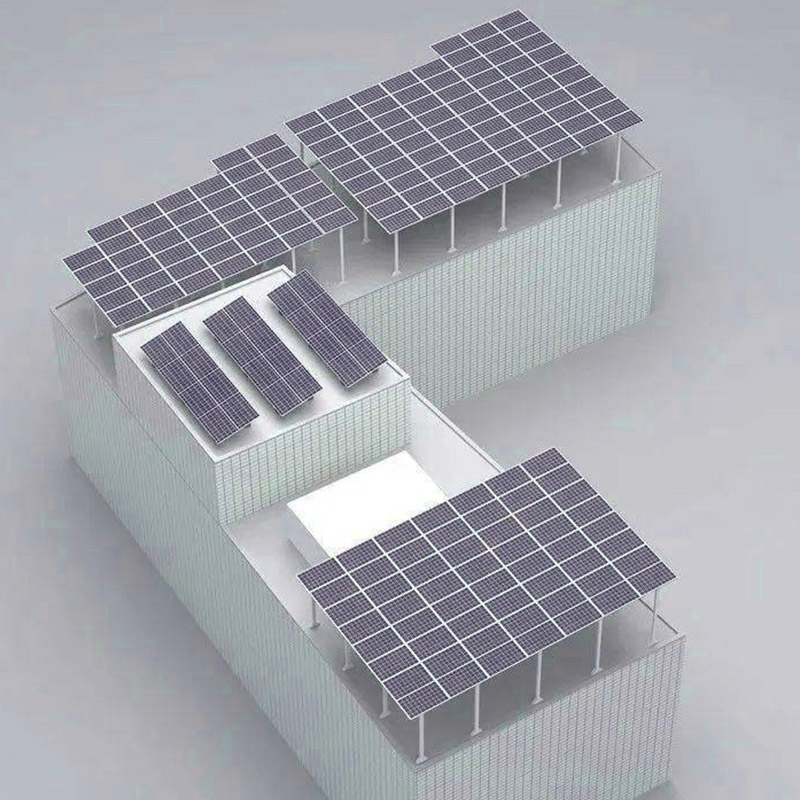

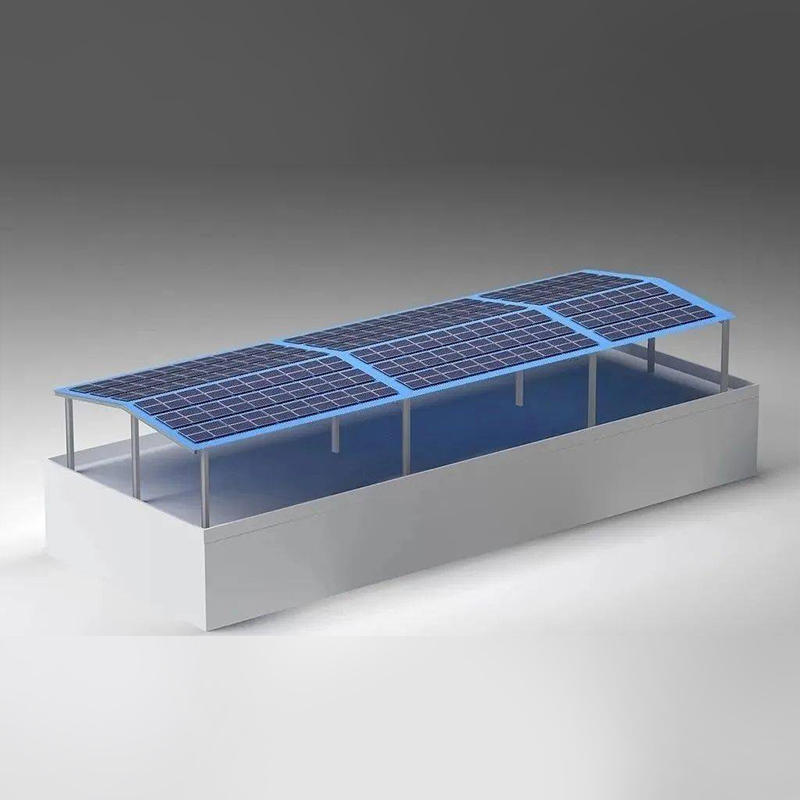

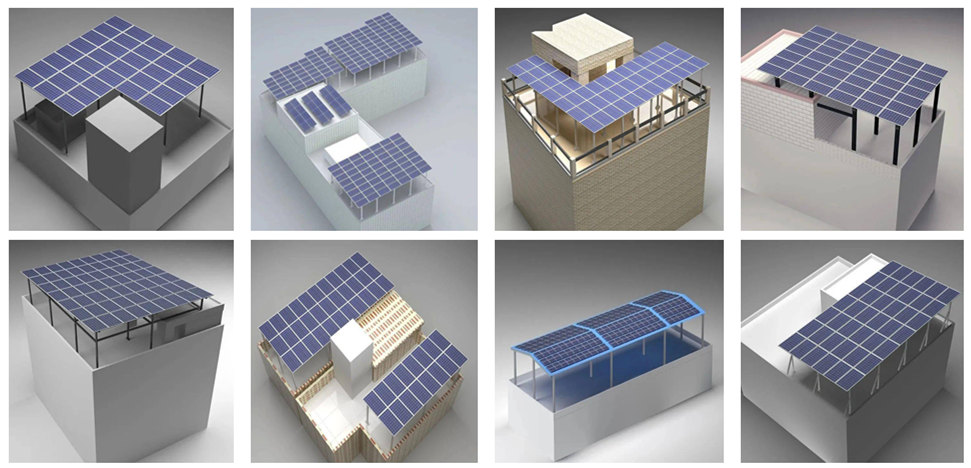

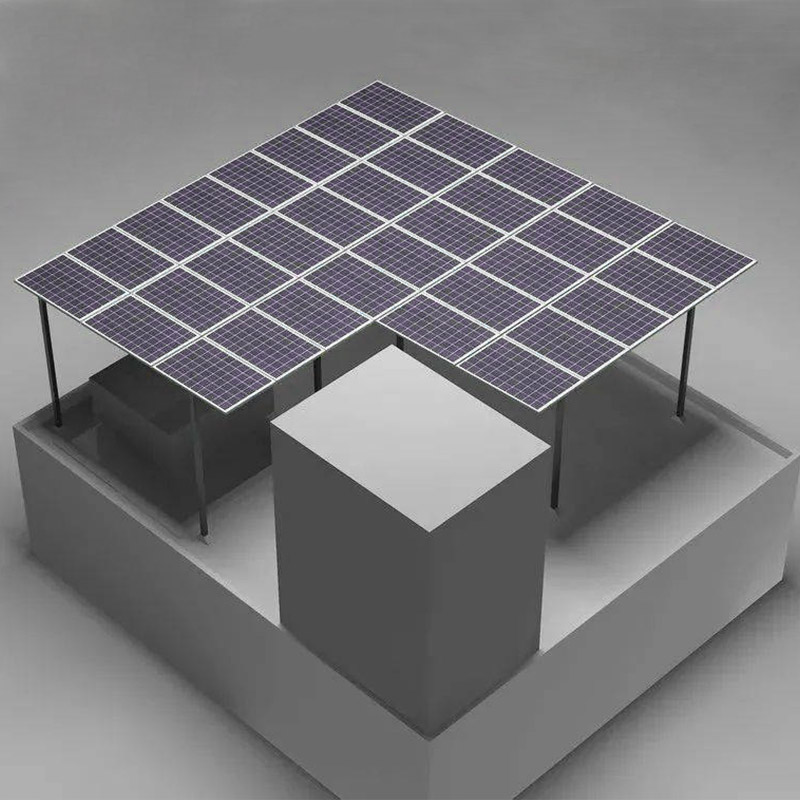

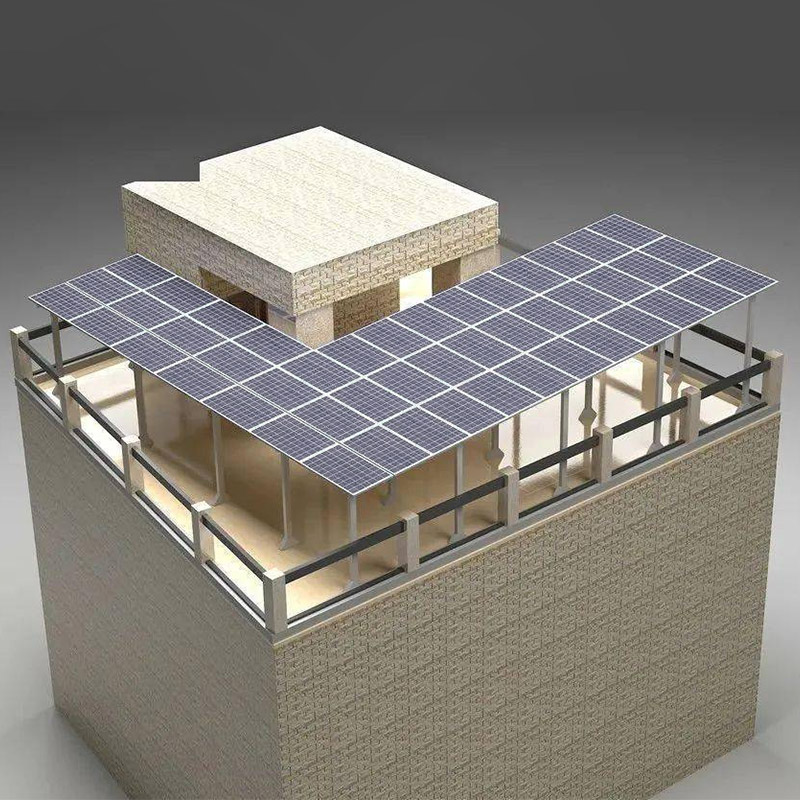

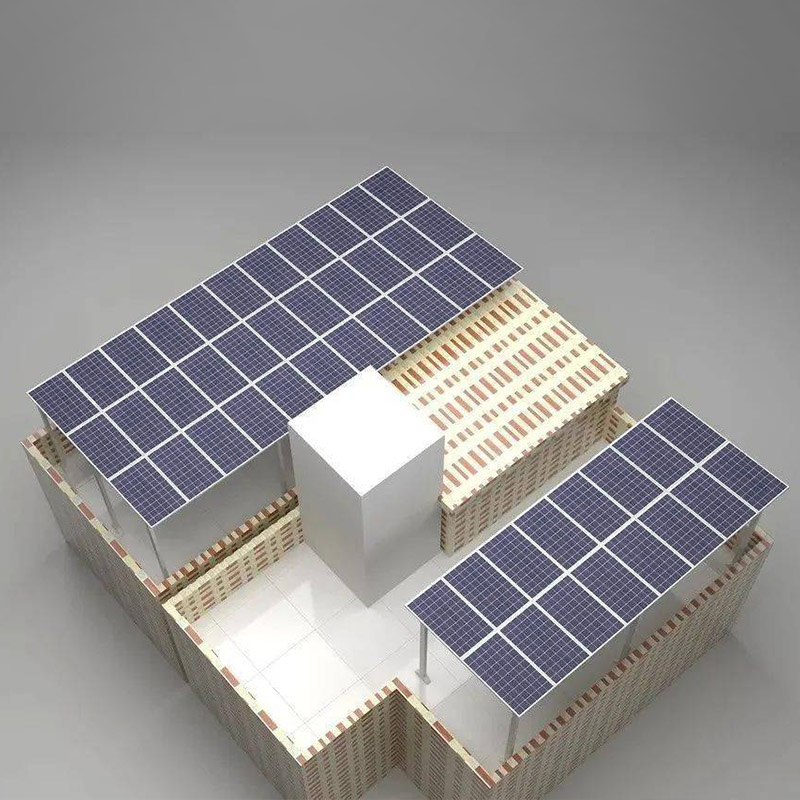

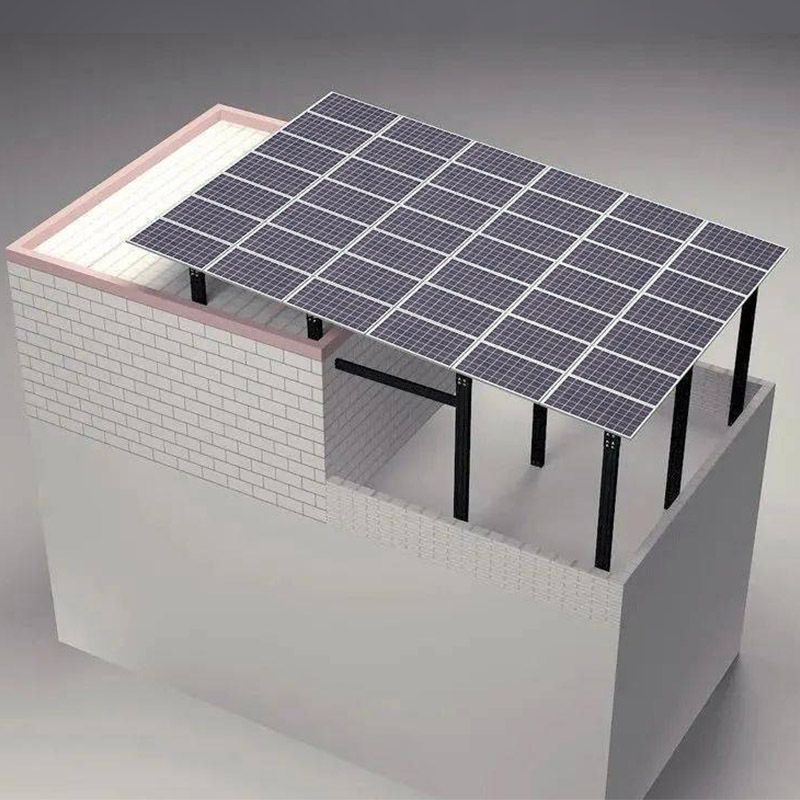

BIPV_Solar Mounting System

The Roman Tile Roof Hook is exclusively designed for the solar panel mounting on roman tile roof. Just few steps with 4 components, easy to install.

Helical ground screw is screw equipped with bigger blades than general one, which provides better pulling resistance performance, suitable for soft clay.

The solar carport system is arranged with reasonable spans according to the parking needs of customers, making it convenient for vehicles to enter and exit.

Use universal stainless steel roof hook for tile roof rack mounting system，stainless roof hook installation with Self-tapping screw M6.3*80mm

Special greenhouse Agricultural Solar Mounting Systems allow crops to grow at a suitable temperature, increasing yields while allowing sunlight to be utilized. Farmers can fully exploit the sun energy for daily basic activities like irrigation, heating and lighting.  A solution with enough space, benefits to the machine work Excellent anti-corrosive performance Pre-assembled components, Customed shading rate     Installation Site Open Field Area, Above the planting Farmland    Installation Base Ground screw, ground clearance Over 1800mm Tilt angle Customized tilt angle Module orientation Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material      Material: Anodized aluminum 6005 T6 stainless steel 304, 410; Hot-dipped galvanized steel Q235B    Warranty / Duration  12 years/ More than 25 years

Metal Roof Solar Panel Mount Tripod Angle Aluminum It can be installed on metal roof clamp or penetrate into concrete. Highly pre-assembly, easy installation Perfect also for small systems of 1,2,4 or 8 modules, Fixed angle, adjustable angle both available. Highly pre-assembly, easy installation Fixed angle, adjustable angle both available Tilt angle: 5-45° Strong structure with most competitive price    Installation Site Flat Roof or inclined metal/tin roof Tilt angle 5-45° Economic layout Landscape/portrait , Perfect also for small systems of 1,2,4 or 8 modules    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

Solar ground ramming pile mounting system is applied to residential, commercial and utility scale PV projects on non-sandy ground. It suits both framed or frameless solar panel installations, especially on uneven terrain. It works for level ground too.

Single Solar Tracking system improves power generation efficiency. single-row tracking bracket pv system can adapt to the 20% slope of the north and south slopes,
