Tile Roof Hook

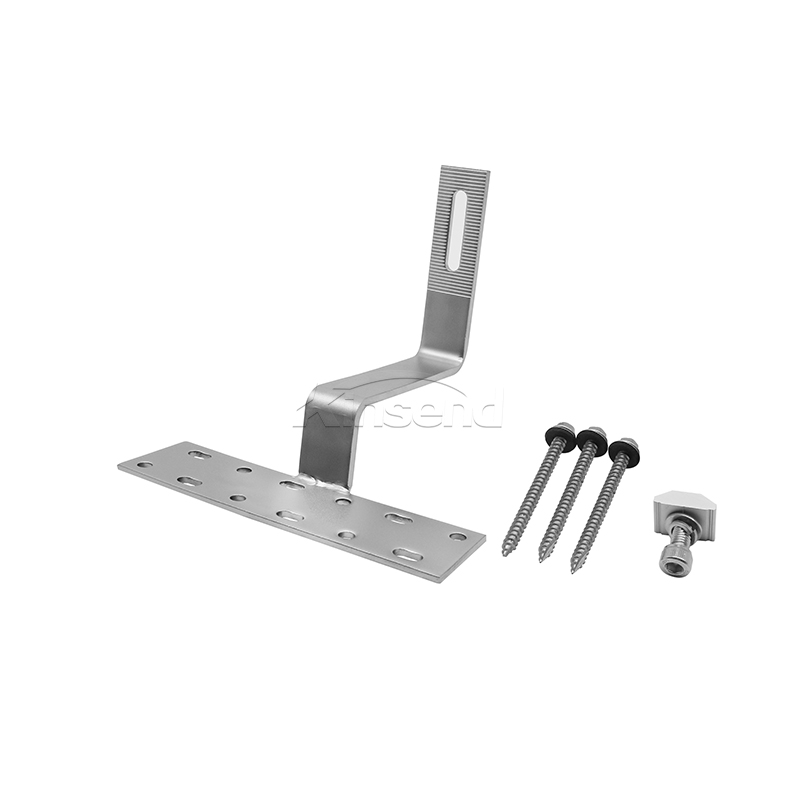

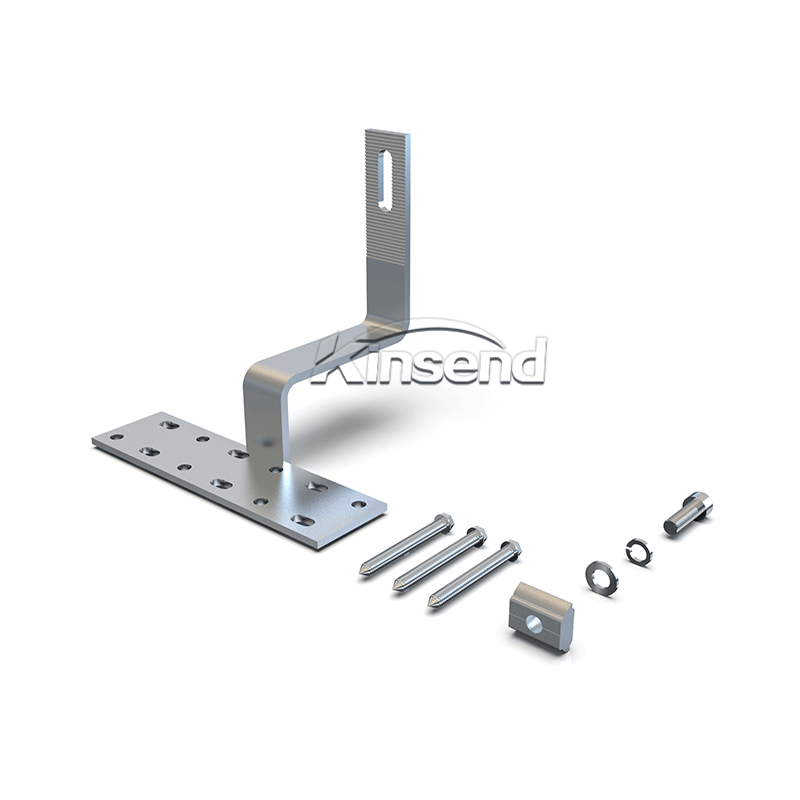

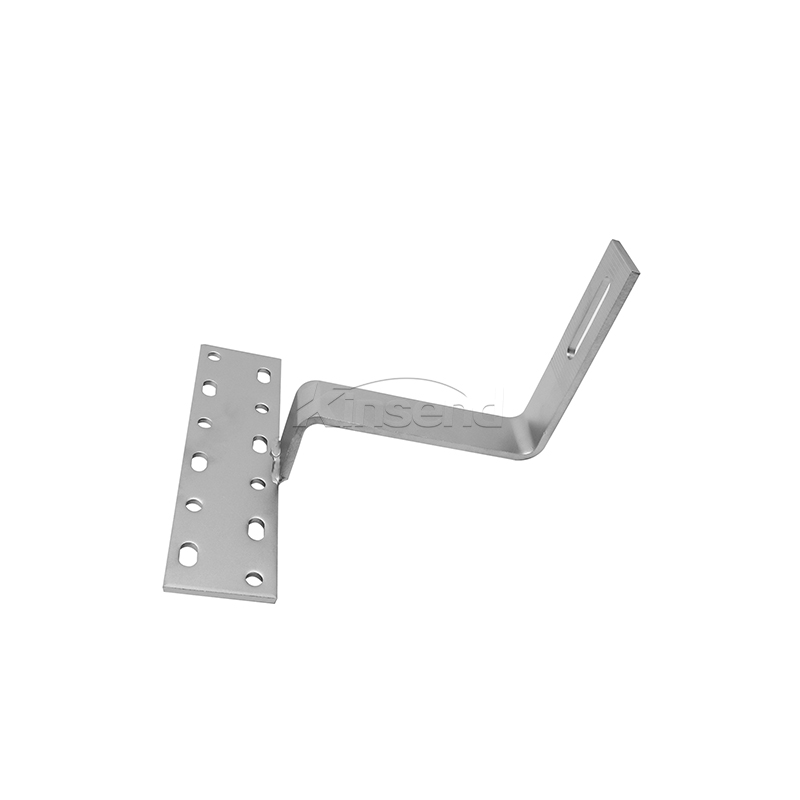

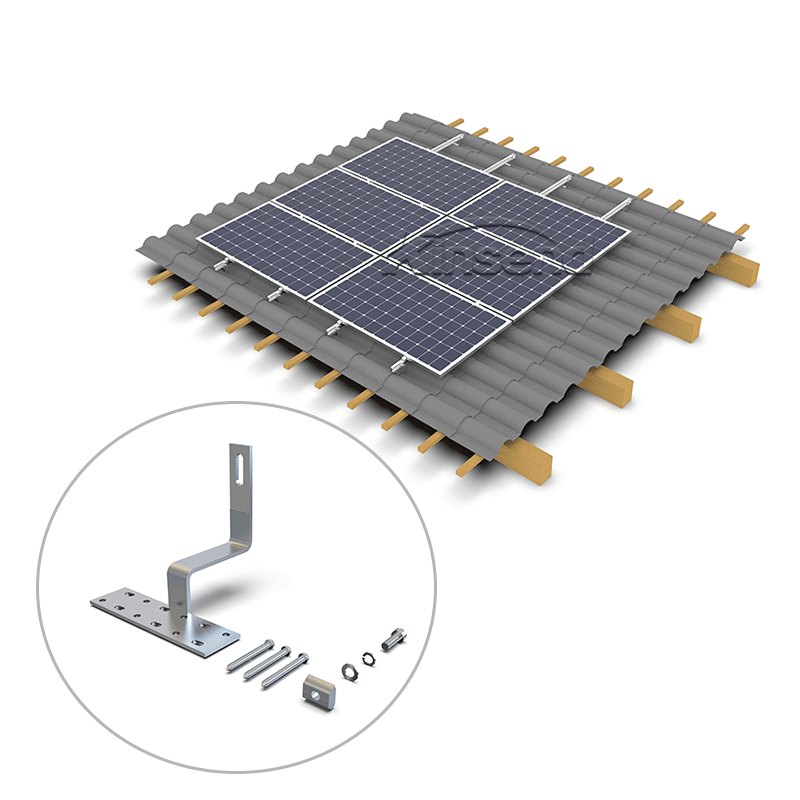

Use universal stainless steel roof hook for tile roof rack mounting system，stainless roof hook installation with Self-tapping screw M6.3*80mm

  • Item no.:

    KS-HK-R01

  • Payment:

    T/T,L/C

  • Product origin:

    China

  • Color:

    Silver, Black

  • Shipping port:

    Xiamen, China

  • Lead Time:

    7-14 days
Inquire now
  • Product Detail

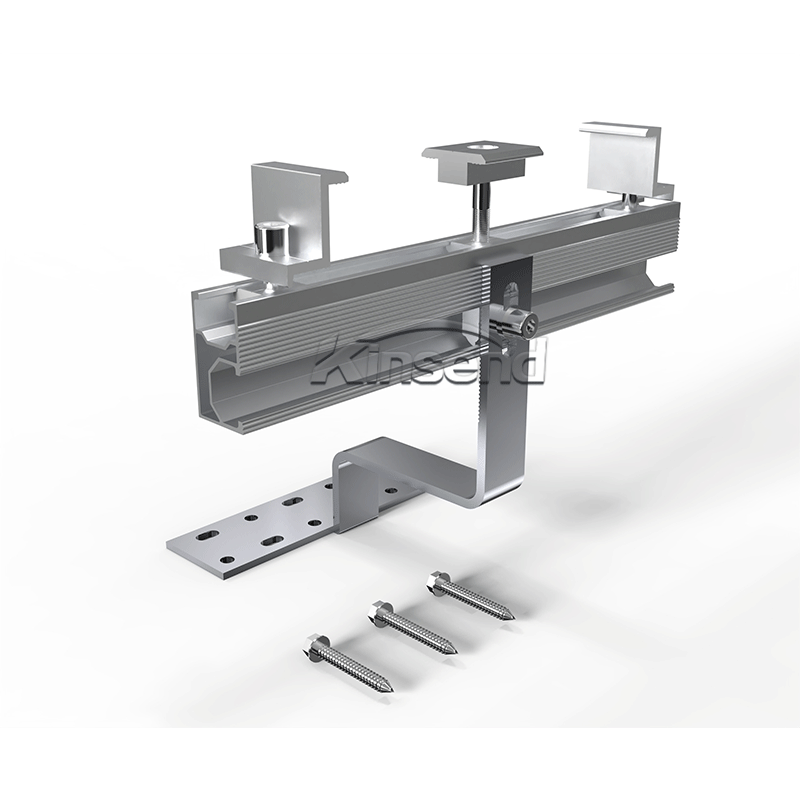

Use universal stainless steel roof hook for tile roof rack mounting system，stainless roof hook installation with Self-tapping screw M6.3*80mm Match with aluminum rail，Fix the solar panel with module clamps. A simple and fast installation solution




  •  Faster installation which saves your labor cost
  •  Good compatibility

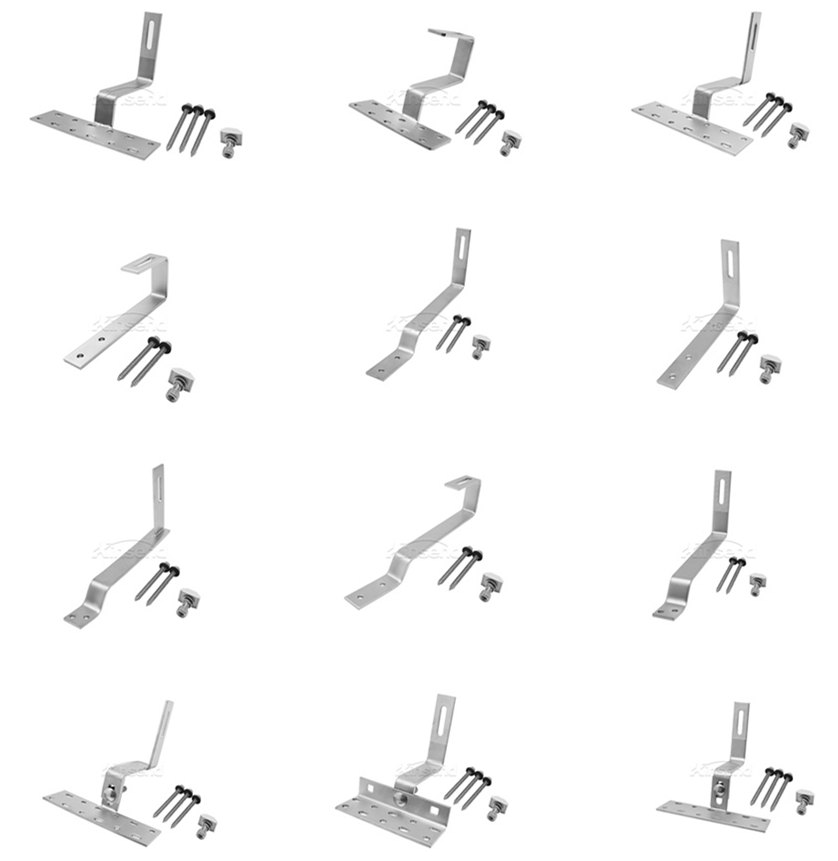

  •  Different hooks are compatible with various tile roofs
  •  Stainless steel roof rack is is universal roof hook for tile roof

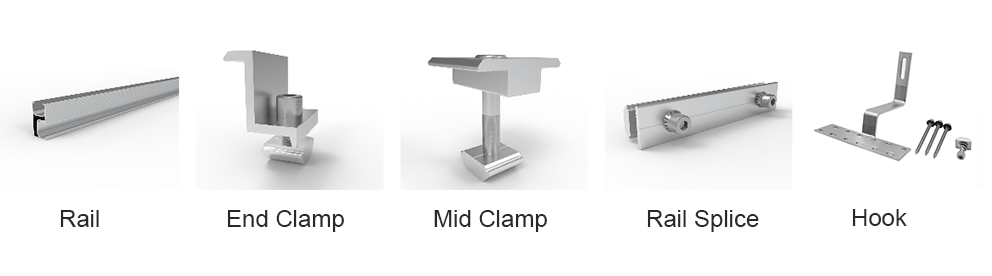

Components List





   Installation Site

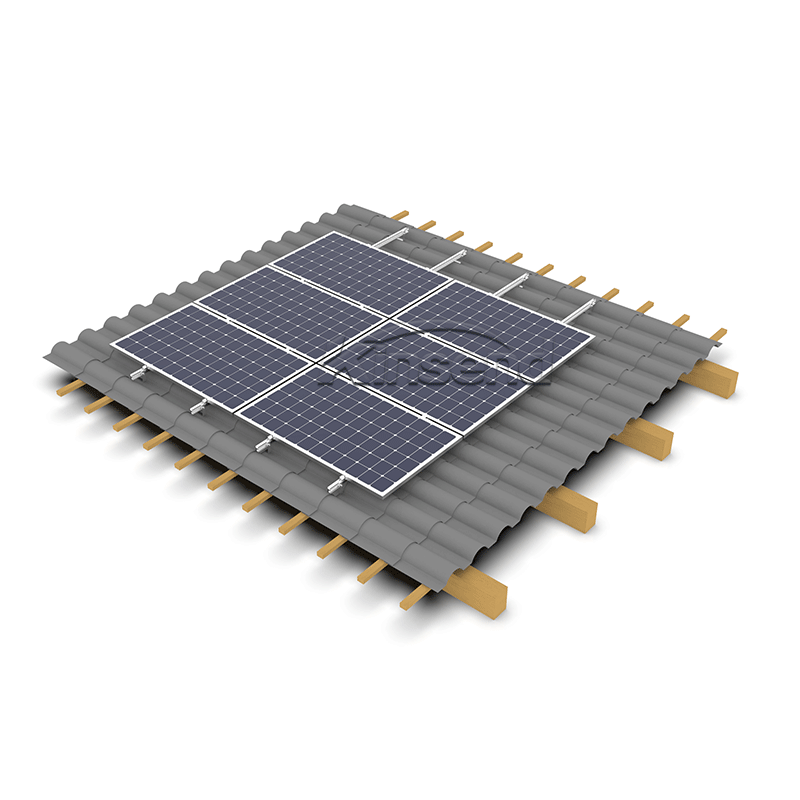

Pitched roof with tiles

   Installation Base

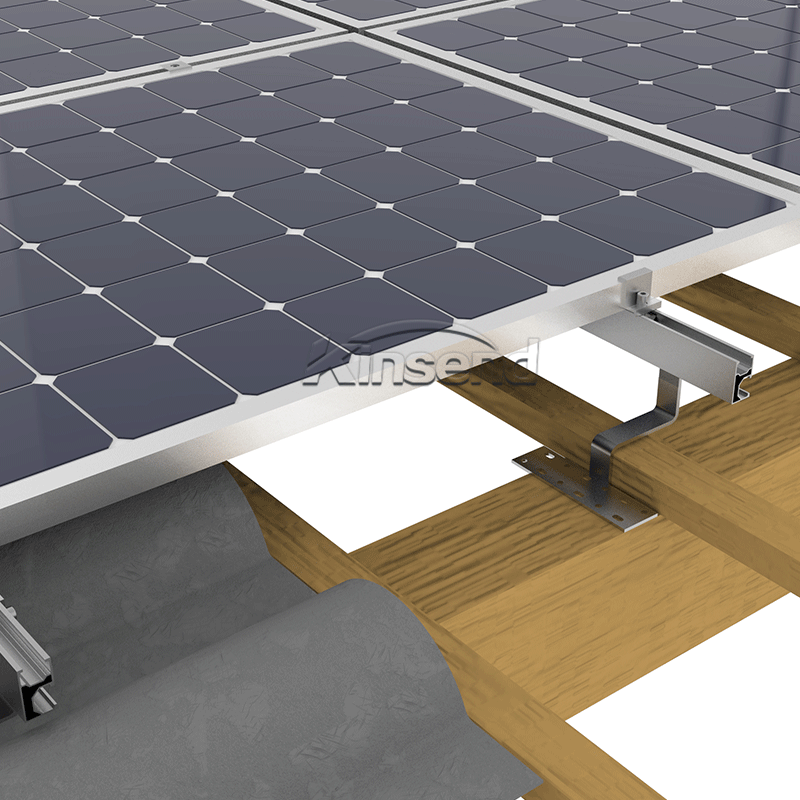

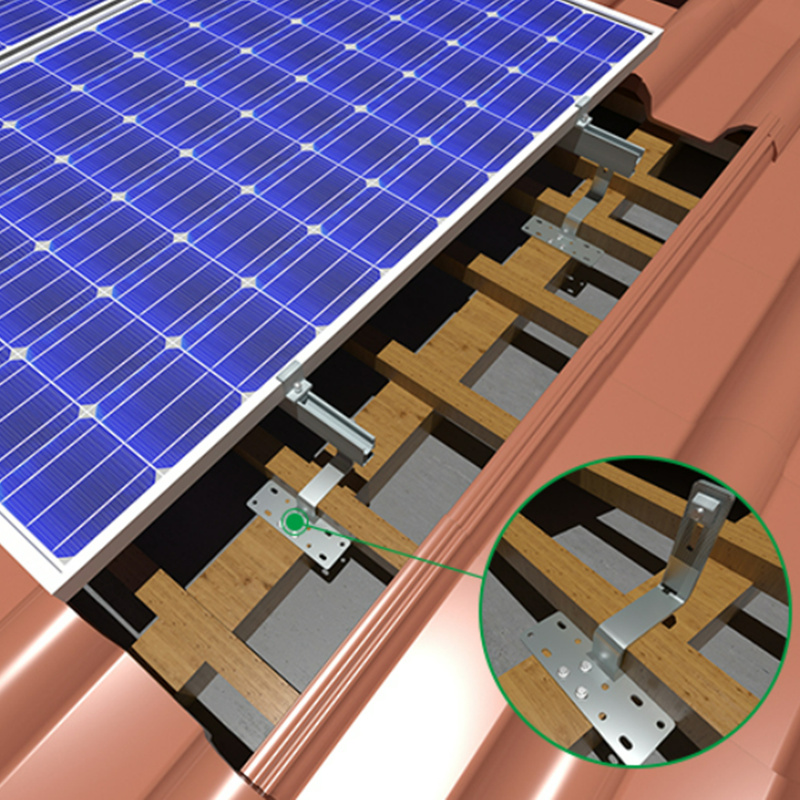

Roof hooks onto rafters

Layers of Rails

Single/double layer, cross rail installation

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Stainless steel hook & Al6005-T5 rail

    Anti-corrosive

Stainless steel hook / Anodized

    Warranty / Duration

 12 years/ More than 25 years
