C Steel Ground Moungting System C Rail

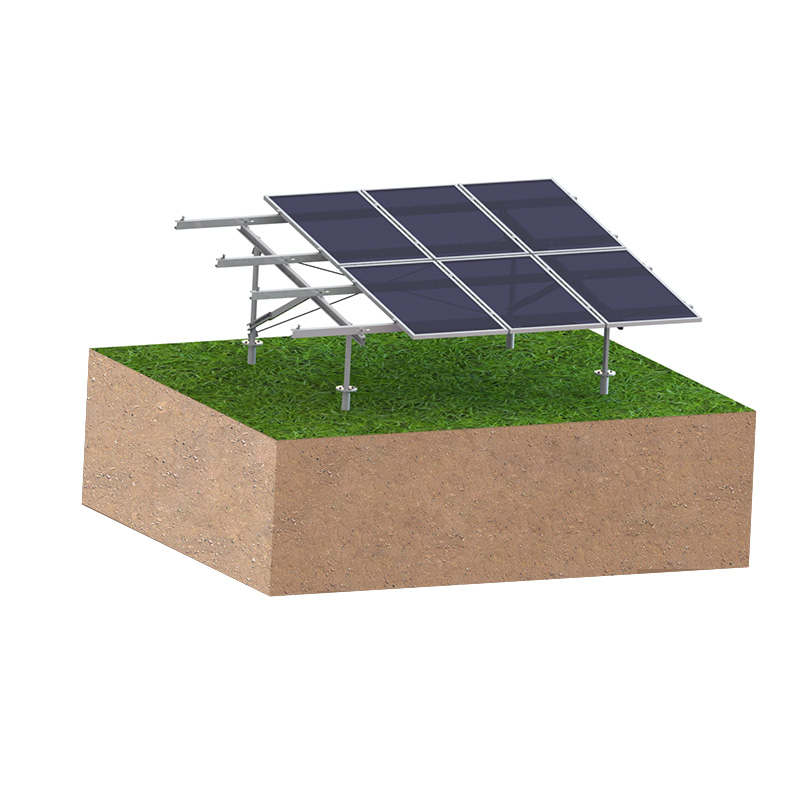

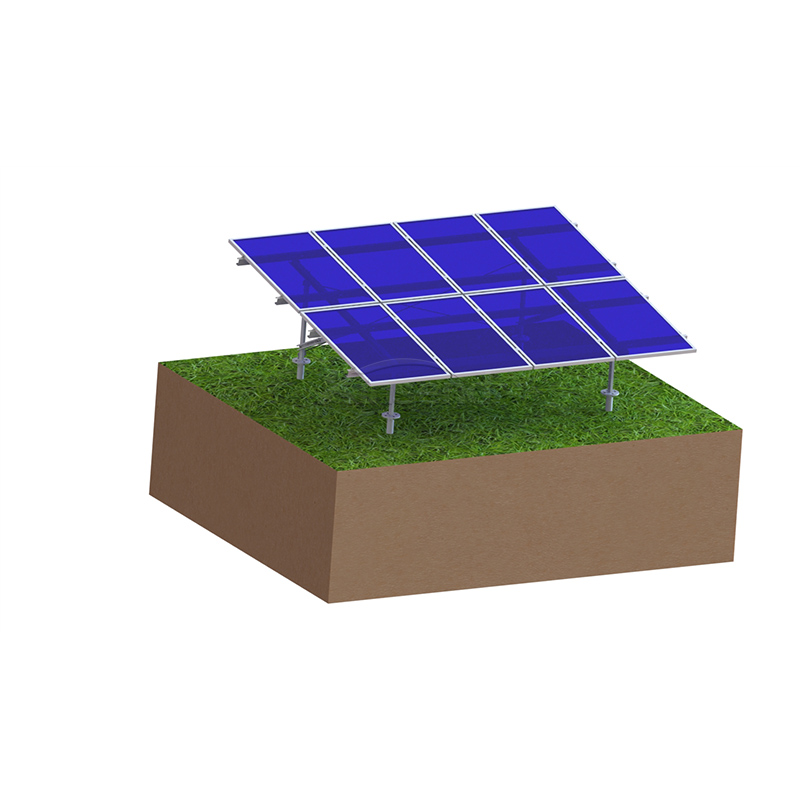

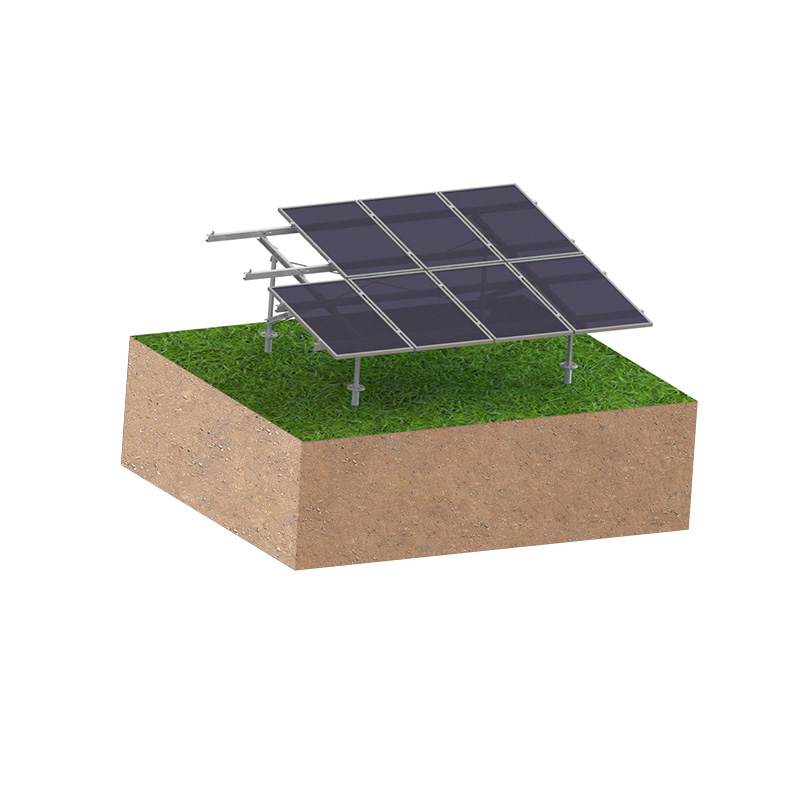

Solar Ground carbon steel mounting system open field, this is a new type of installation using C-shaped carbon steel pole,High strength material and superior

The Adjustable Triangle Solar Mounting System is suitable for flat rooftop, easy and quick to install, allowing for adjusting the tilt angle if necessary.

Helical ground screw is screw equipped with bigger blades than general one, which provides better pulling resistance performance, suitable for soft clay.

The concrete foundation solar support system is the ground system with the best environmental protection. Prefabricate the concrete foundation.

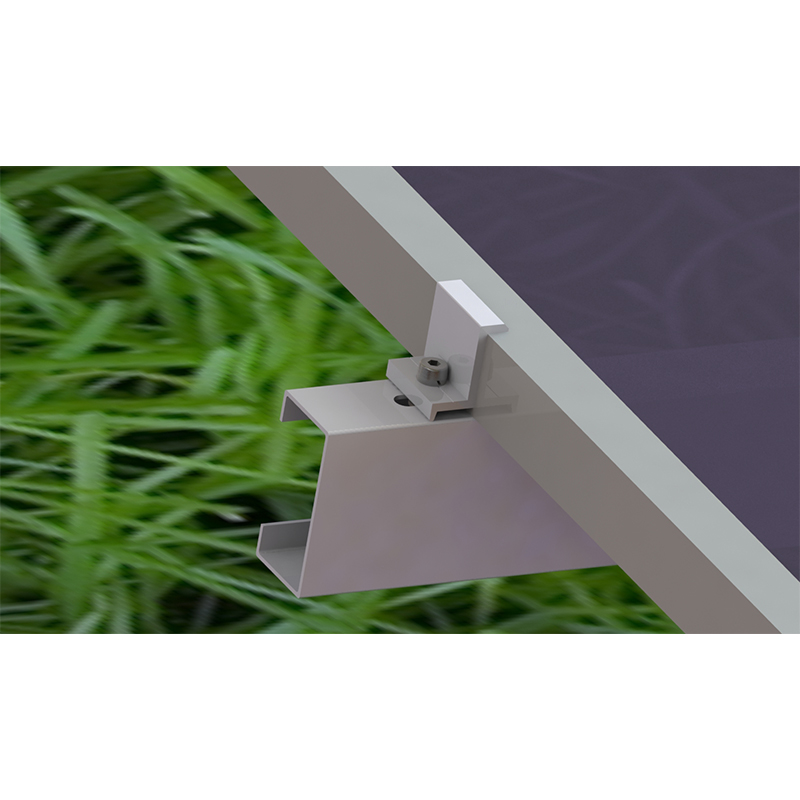

This clamp is used to fix the rail ，Made of aluminum, each section is anodized. Kinsend manufacture solar accessories for solar panel mounting system, like solar hook, end clamps, mid clamp and rail. We have normal type and can also customized as clients' requirement. Solar clamps can work with most types of solar panels and rails. Quick and easy installation Strict QC over all components ensure the high reliability of the strength Made of aluminum, each section is anodized    Installation Site Fixed rail installation    Installation Base Match with SHL-JTD036 rail installation Module orientation Vertical    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304    Packaging Detail  Export Standard Carton With Pallet,interleaving each profile to protect the surface    Warranty / Duration  12 years/ More than 25 years Related Products

Description The Universal T Shape Mid Clamp is applicable for the mounting of 30-50mm framed or frameless solar panel, patented D block could be easily installed in the rails.
