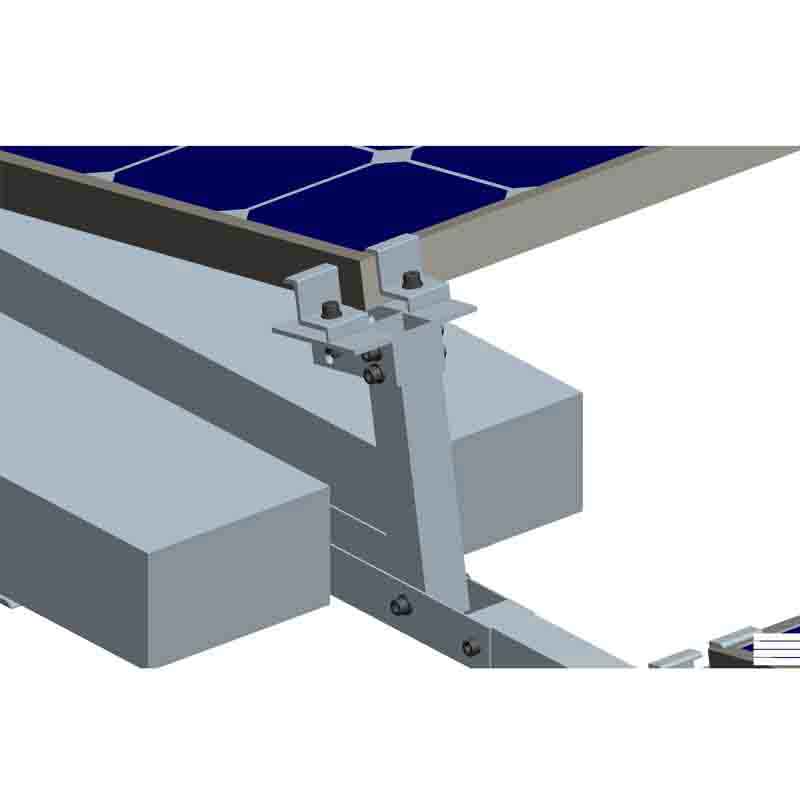

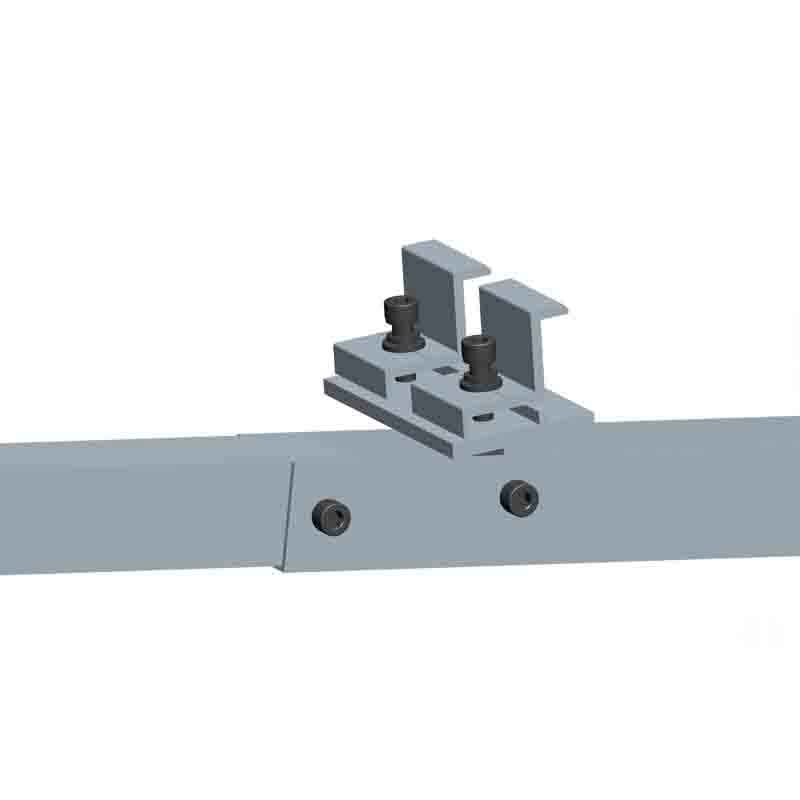

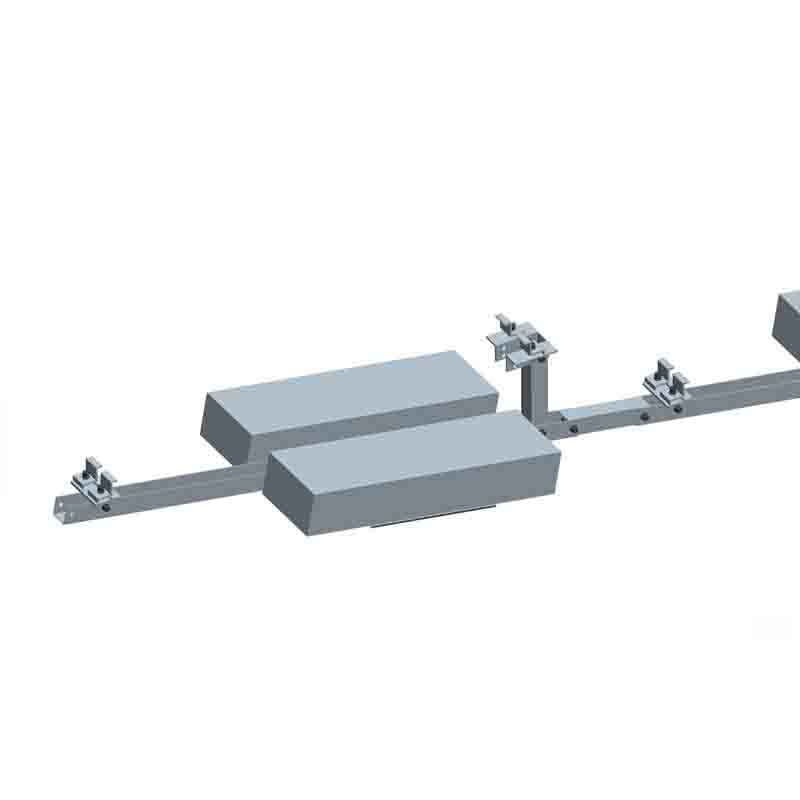

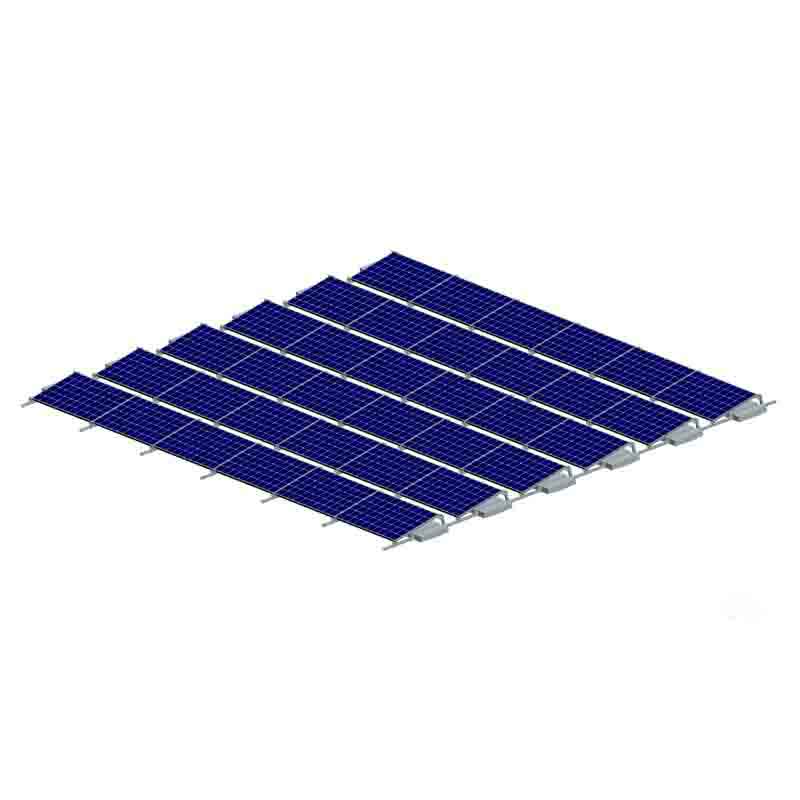

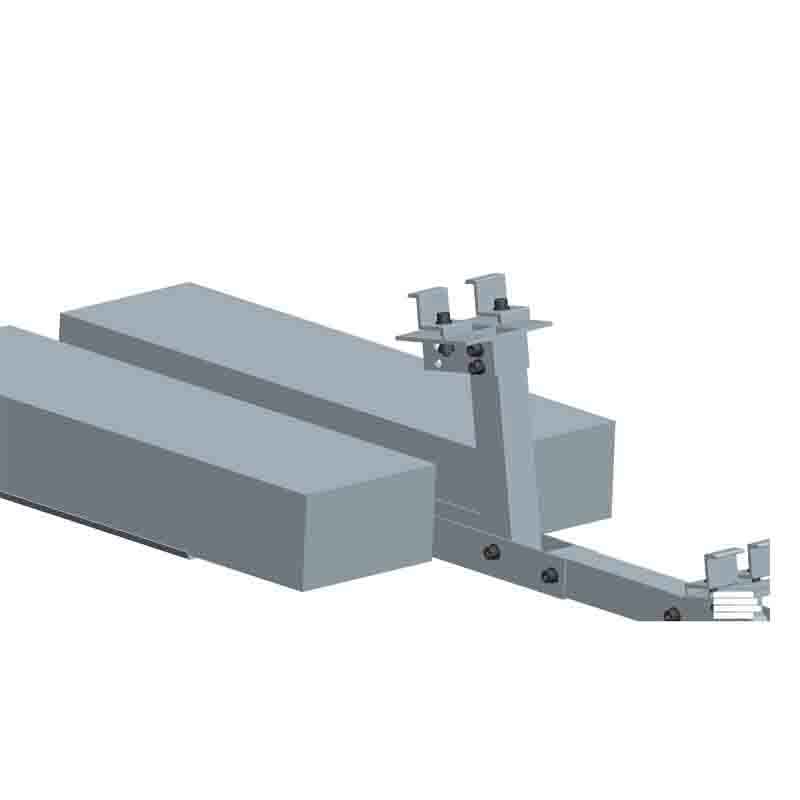

Flat Roof Ballast Solar Mounting System

Solar ground ramming pile mounting system is applied to residential, commercial and utility scale PV projects on non-sandy ground. It suits both framed or frameless solar panel installations, especially on uneven terrain. It works for level ground too.

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet .Tin roof solution, is available for almost all type of tin roof. Product designed with high strength which can resist max wind speed at 60m/s. Main material is AL6005-T5 with average 12μm anodizing film. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.  Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters Details    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

The Universal Z Shape End Clamp is applicable for the mounting of 30-50mm framed or frameless solar panel, full sides anodizing.

The Rail Splice Kit is designed for roof mounting systems, providing a reliable connection solution. Made from high-quality materials, it ensures durability in various weather conditions and allows for quick, easy installation. Compatible with various solar rail types, this kit is perfect for solar power projects of all sizes.

The Thin Film End Clamp for Solar Panel is made of aluminum AL6005-T5, combined with EPDM pads, tightly install the panel on rails.
