Metal Roof Bracket

Fixed trapezoidal Metal Roof Mounting System, easy to install.

Universal metal tin roof clamp with strong flexibility and easy installation on trapezoidal type metal rooftop

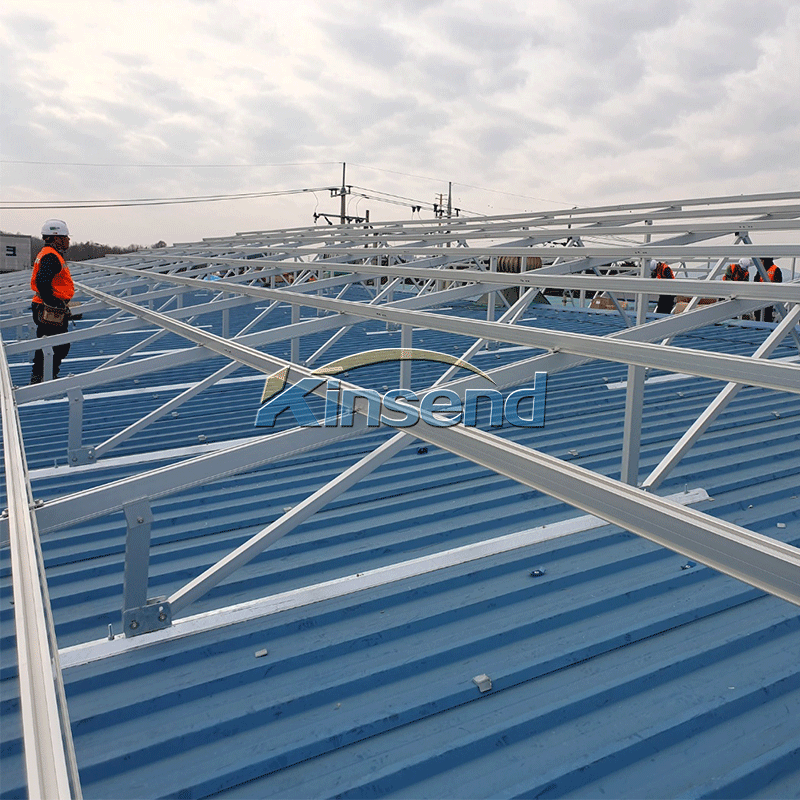

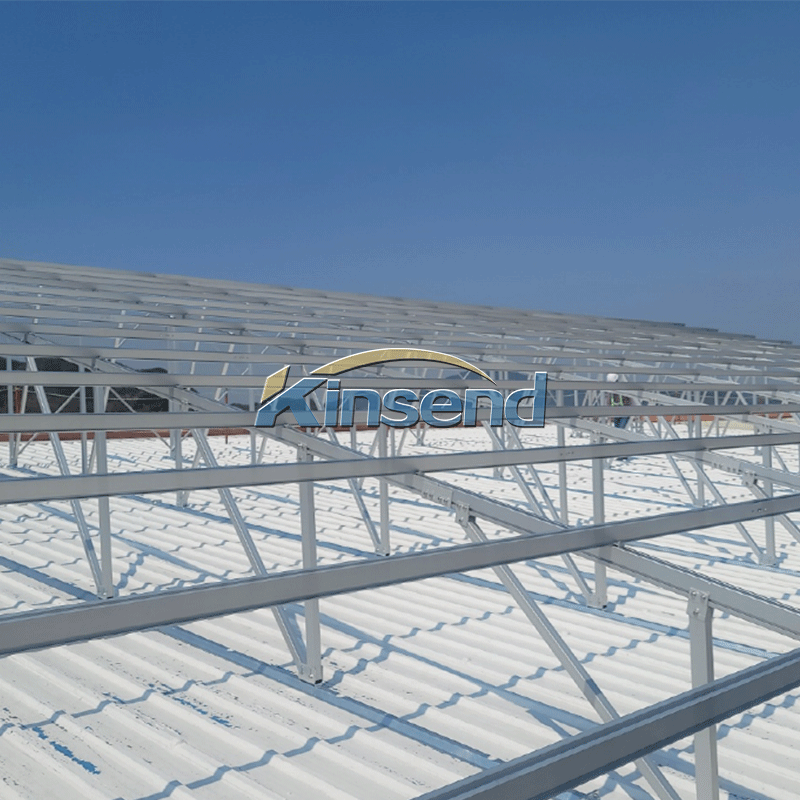

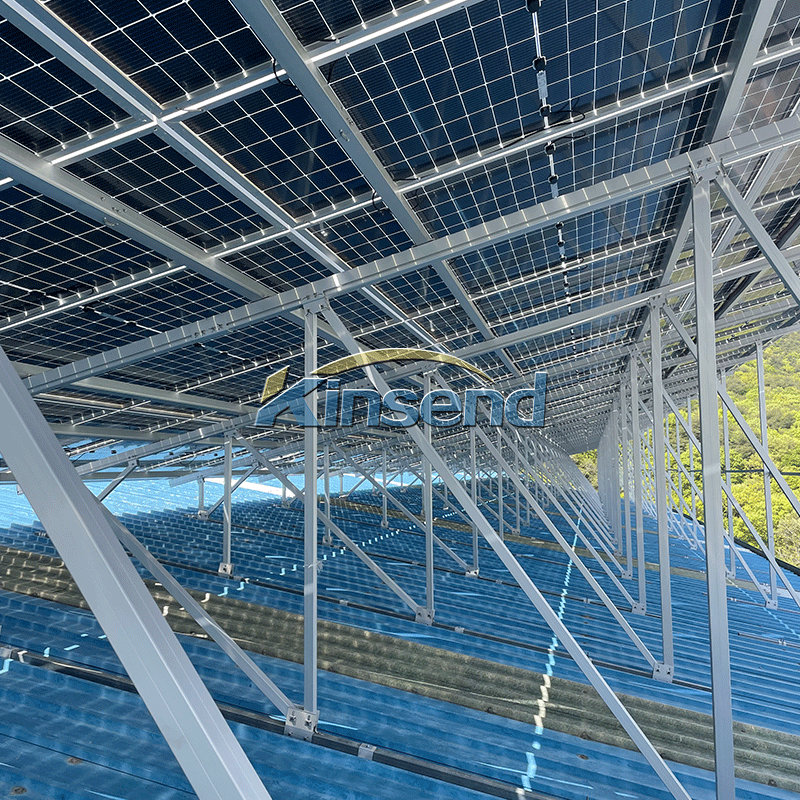

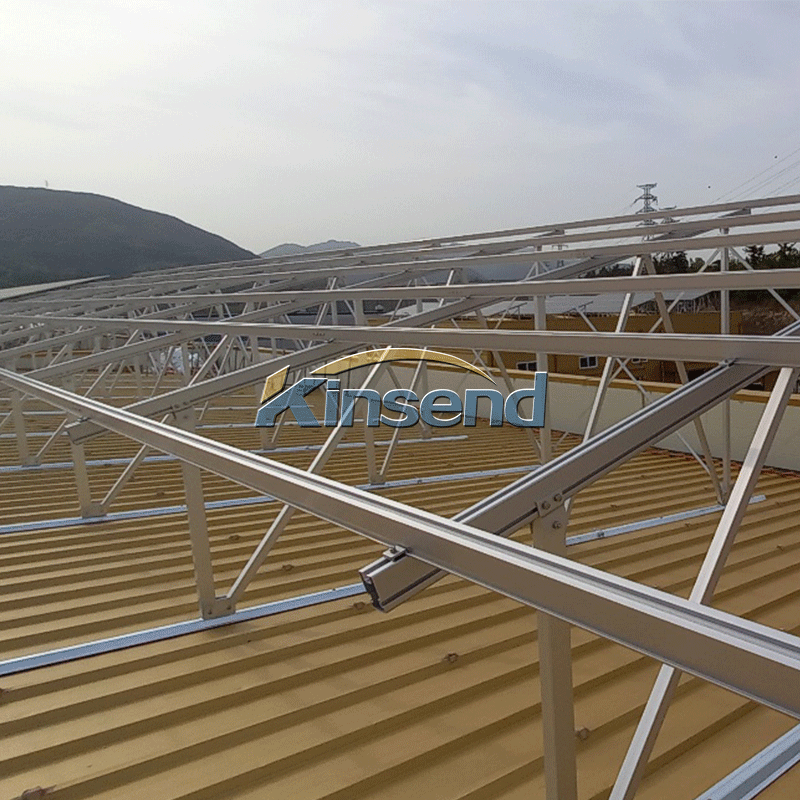

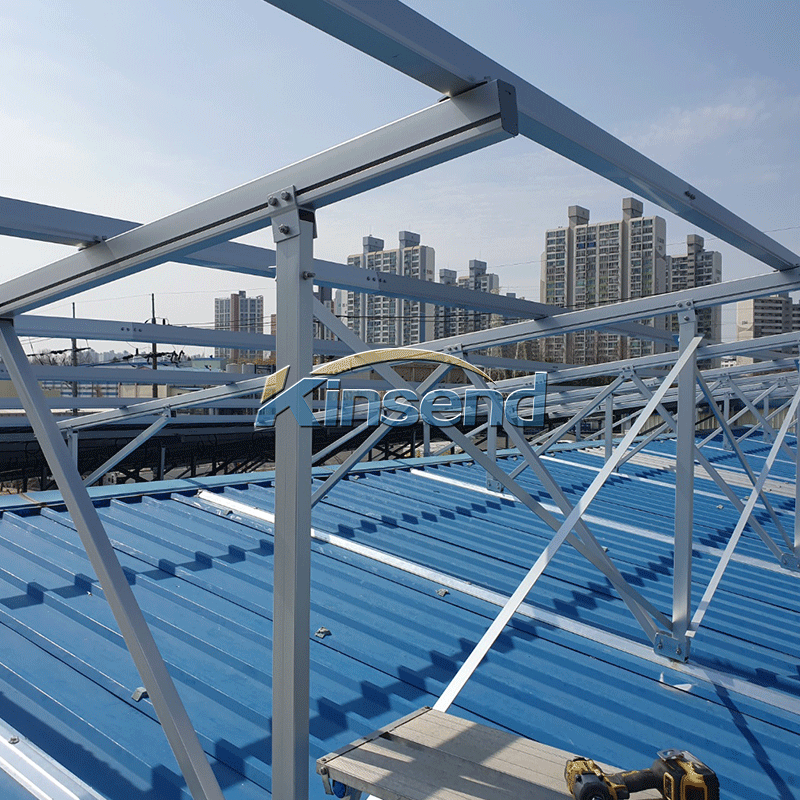

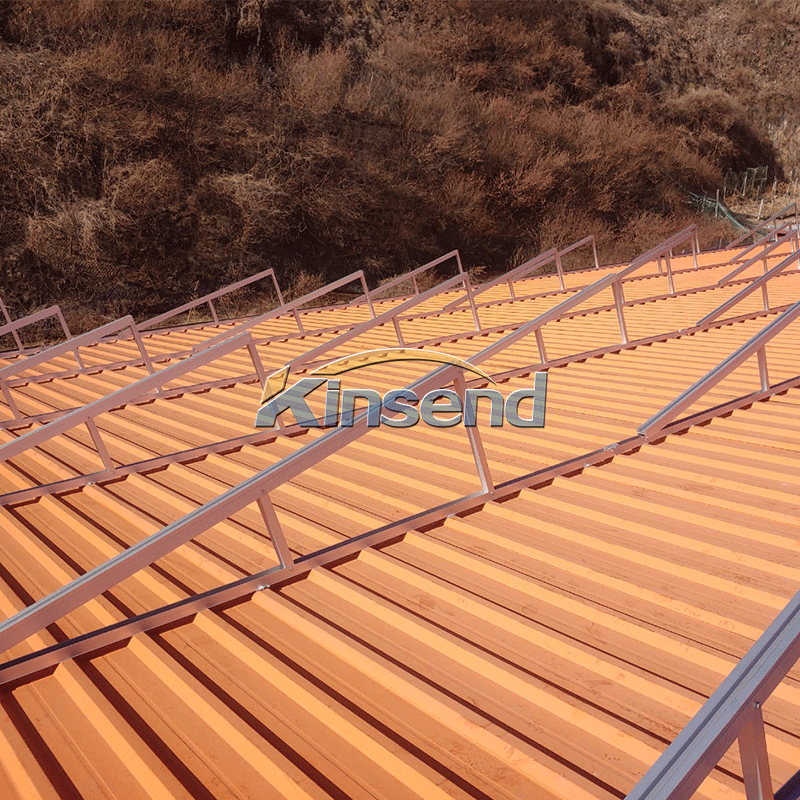

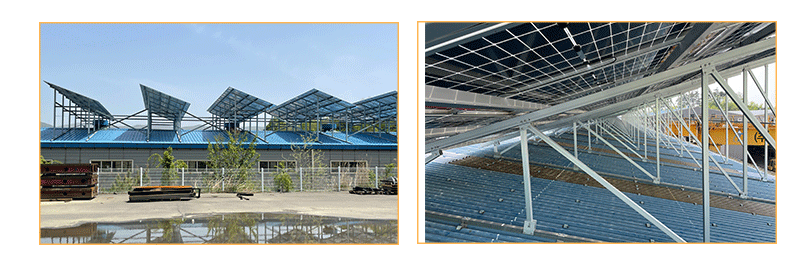

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet .Tin roof solution, is available for almost all type of tin roof. Product designed with high strength which can resist max wind speed at 60m/s. Main material is AL6005-T5 with average 12μm anodizing film. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.  Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters Details    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

Fixed trapezoidal Metal Roof Mounting System, easy to install.

 Universal Stainless Steel Hook , Fixed trapezoidal Metal Roof Mounting System, easy to install.

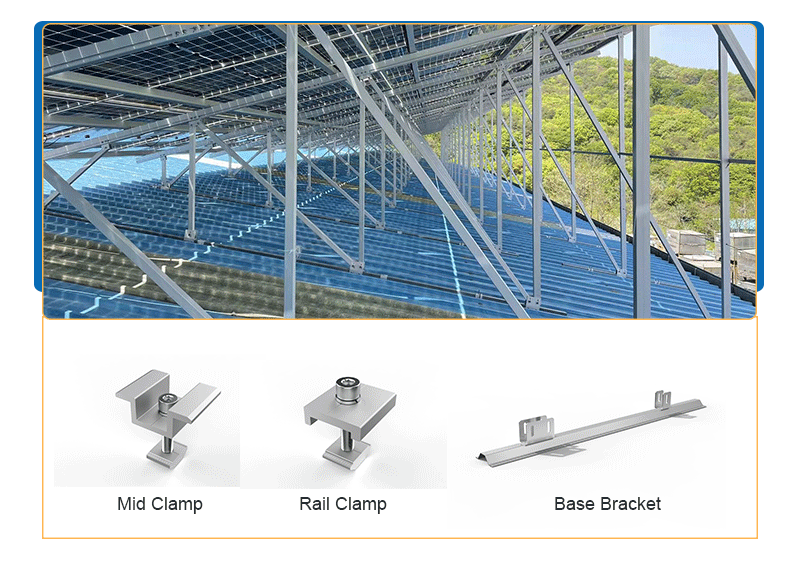

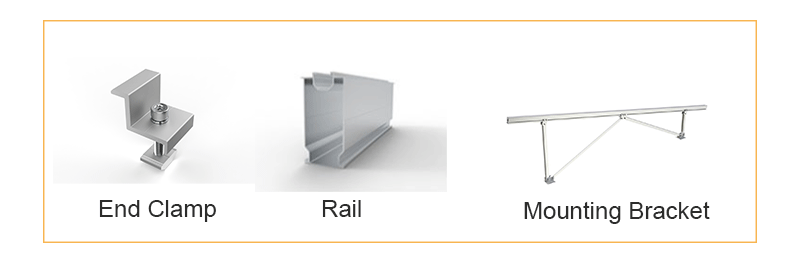

This clamp is used to fix the rail ，Made of aluminum, each section is anodized. Kinsend manufacture solar accessories for solar panel mounting system, like solar hook, end clamps, mid clamp and rail. We have normal type and can also customized as clients' requirement. Solar clamps can work with most types of solar panels and rails. Quick and easy installation Strict QC over all components ensure the high reliability of the strength Made of aluminum, each section is anodized    Installation Site Fixed rail installation    Installation Base Match with SHL-JTD036 rail installation Module orientation Vertical    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304    Packaging Detail  Export Standard Carton With Pallet,interleaving each profile to protect the surface    Warranty / Duration  12 years/ More than 25 years Related Products

This guide rail has strong stability and a square structure in the middle, which reduces the overall weight of the guide rail and provides high safety.

The Universal U Shape Mid Clamp is applicable for the mounting of 30-50mm framed or frameless solar panel, easy to install.
