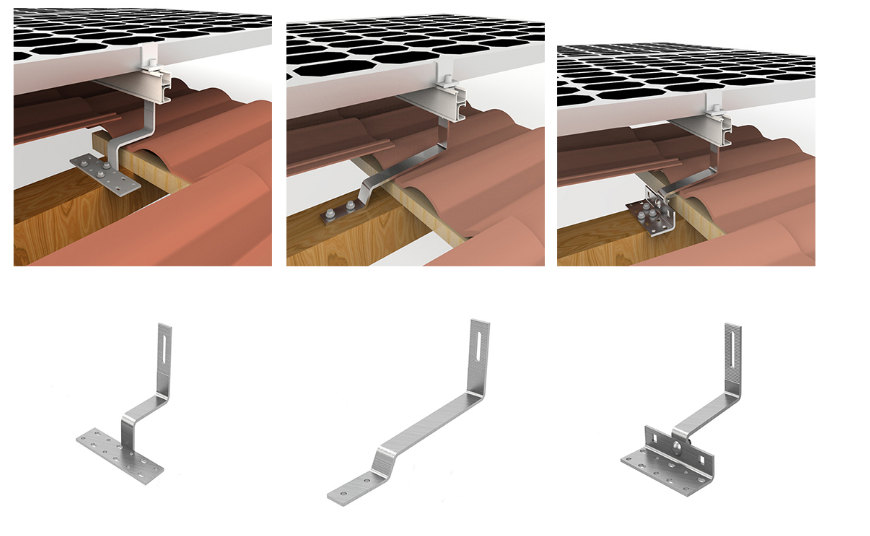

Solar Stainless Steel Hook Custom-made solar tile hooks based on tile specifications,They have adjustable and fixed tile hook type for choice. Several types according to your panel layout direction. Equipped with lightweight and fast installation rails and solar panel clamp, Simple solar mounting components make the installation easy.
- Pre-assembled Components Save Onsite Installation Time
- Flexibility and Adjustability
- Suitable for installing framed and frameless modules
- Safety & Reliable, No need to drill into tile
Components List

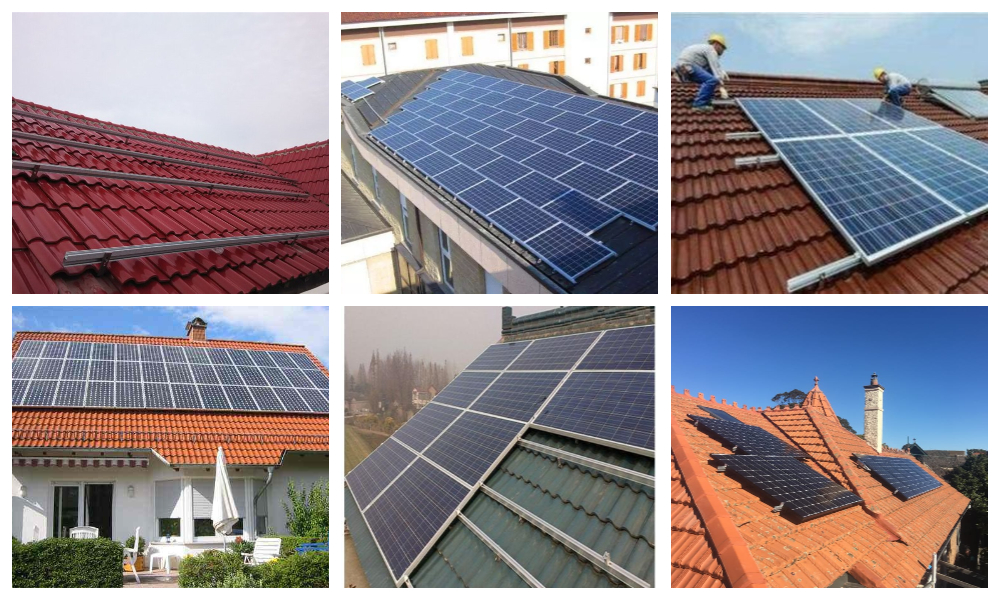

Installation Site
Pitched roof
with tiles
Installation Base
Slate tile roof_wooden beam
Roof Pitch
Up to 60°
Module orientation
Landscape/portrait
Max Wind Speed
< 60m/s
Snow Load
< 80cm
Standards
AS/NZS 1170 &JIS C 8955-2011
Material
· Stainless steel 304 Hook
Warranty / Duration
12 years/ More than 25 years
