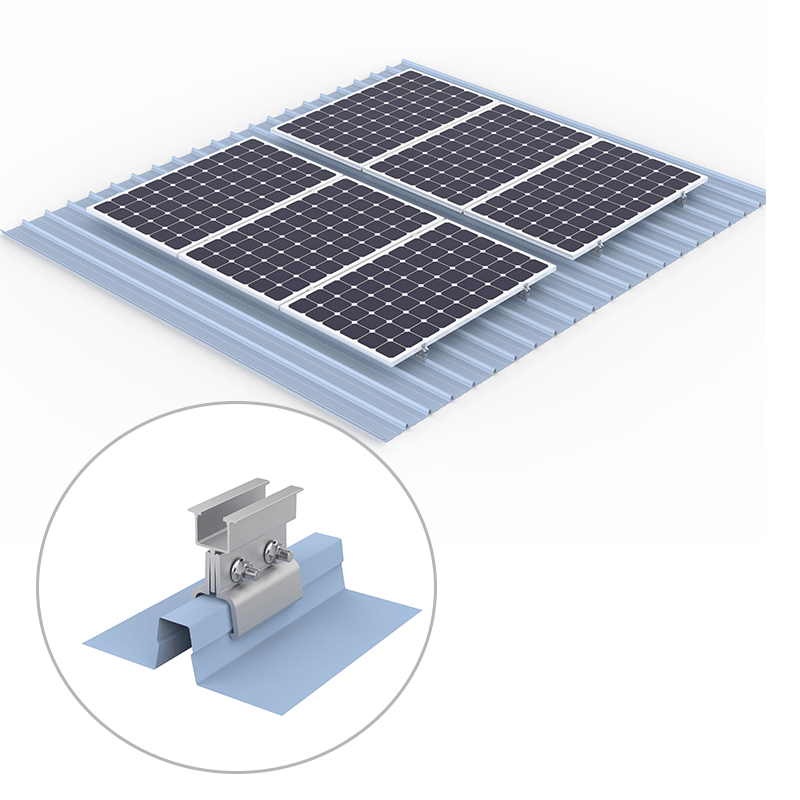

Standing Seam Clamp Roof Mounting System

The standing seam roof clamps easy mounting on the folded seam rooftops. The clamps are designed to catch the standing seams effectively with ease. Clamps offer a secure fastening without penetrating the roof sheets, with maximum stability and minimum weight.

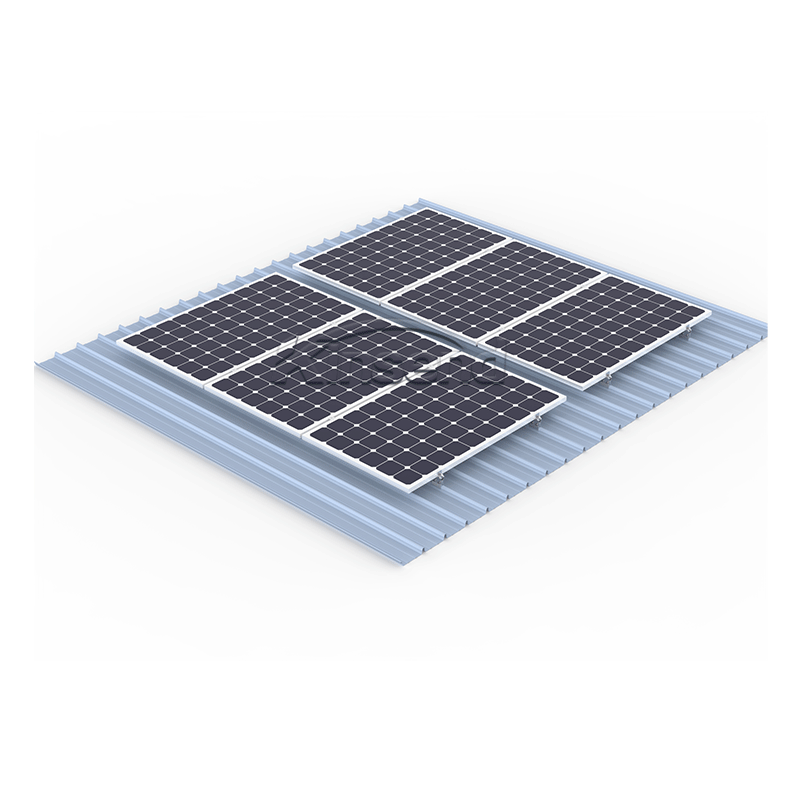

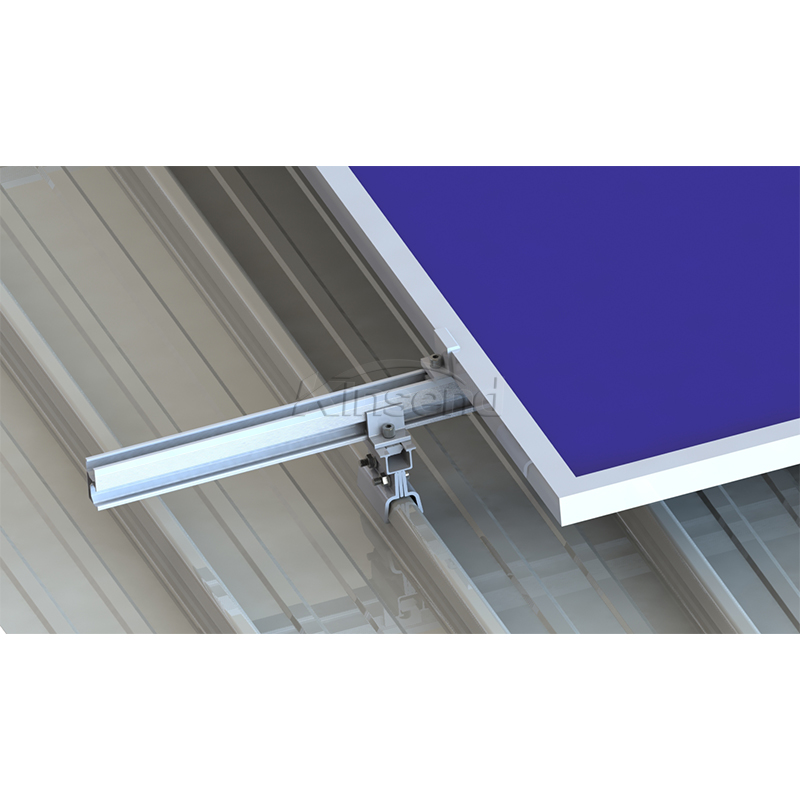

Kinsend's New ECO SYSTEM Is a more lightweight and easy to install system. Fix the 406 cliplock  on the rooftop metal plate and tighten the bolts. Fix the ECO rail on the 406 cliplock with Hex screw. PV module on the ECO Rail with mid clamps and end clamps.

The lightweight rail has a price advantage and is easy to install. Combined with Standing Seam Clamps, it ensures installation and safety,

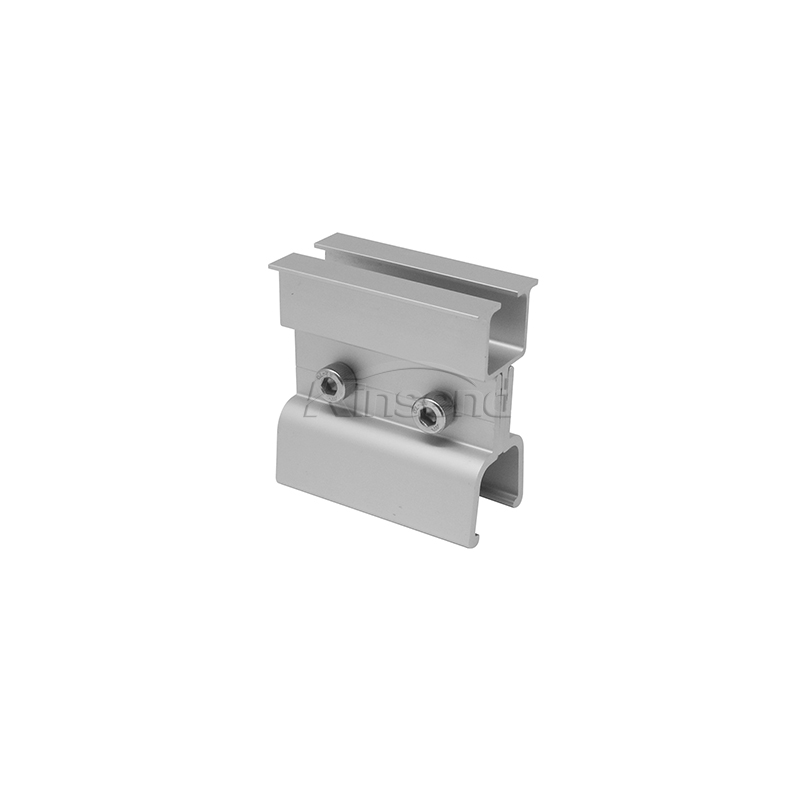

KLIP-LOK 406 Roof Hook

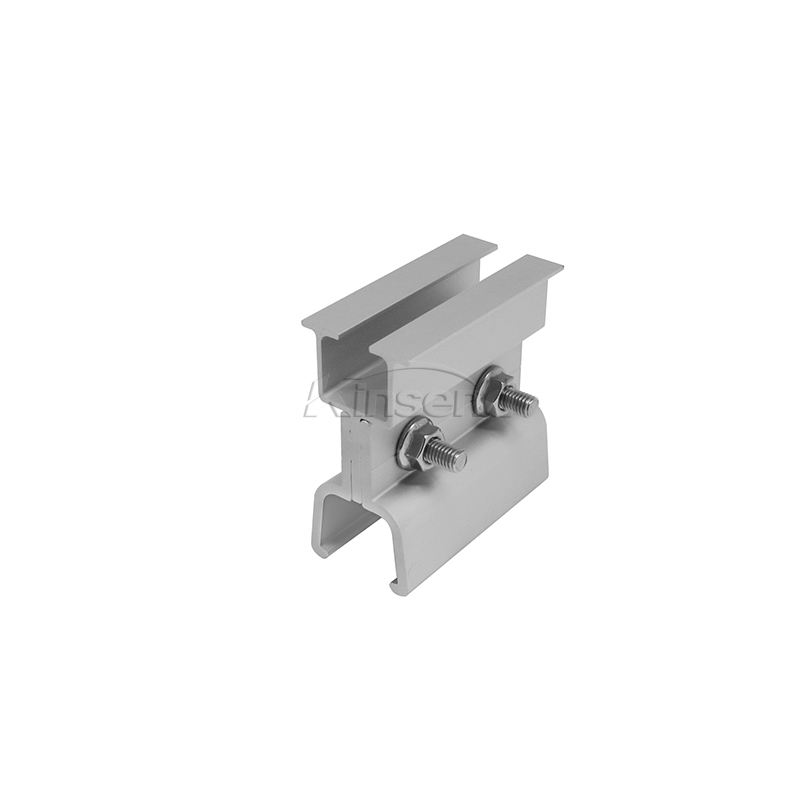

KLIP-LOK 700 Roof Hook , The standing seam roof clamps make mounting on folded seam roof particularly easy.

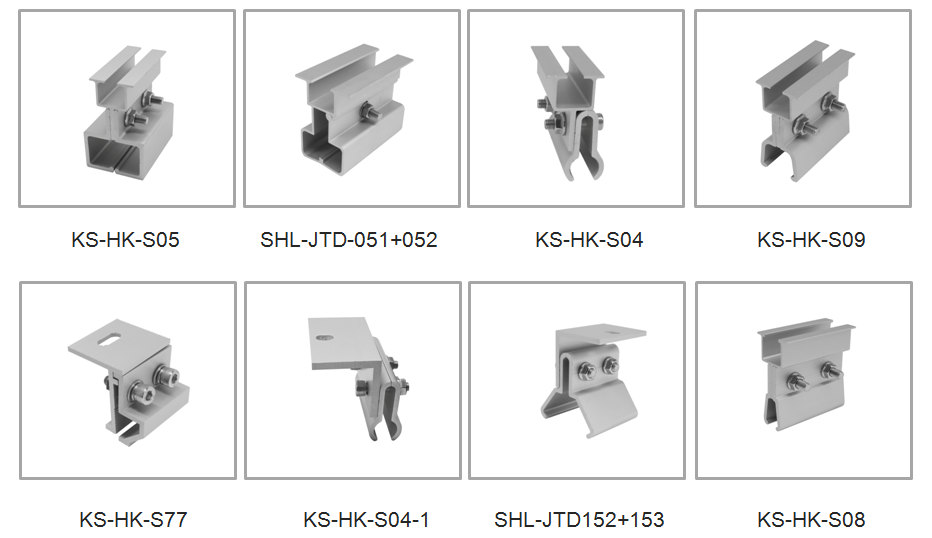

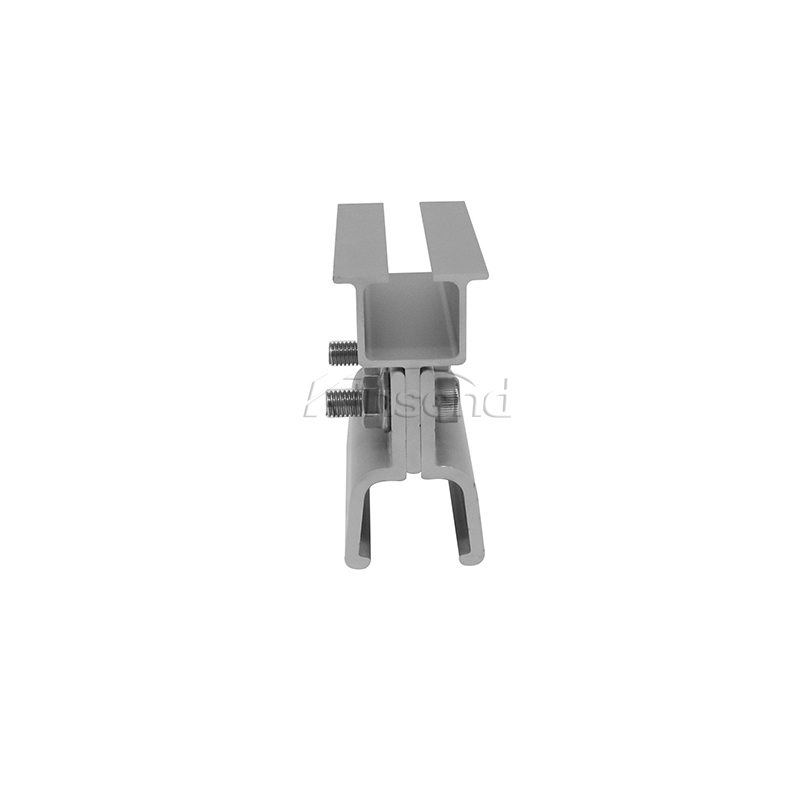

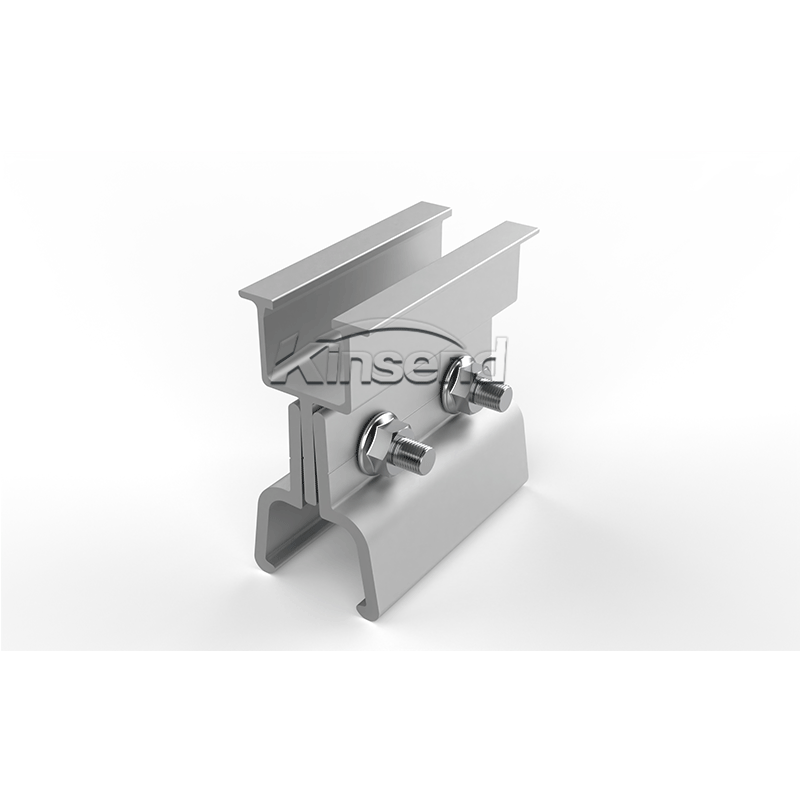

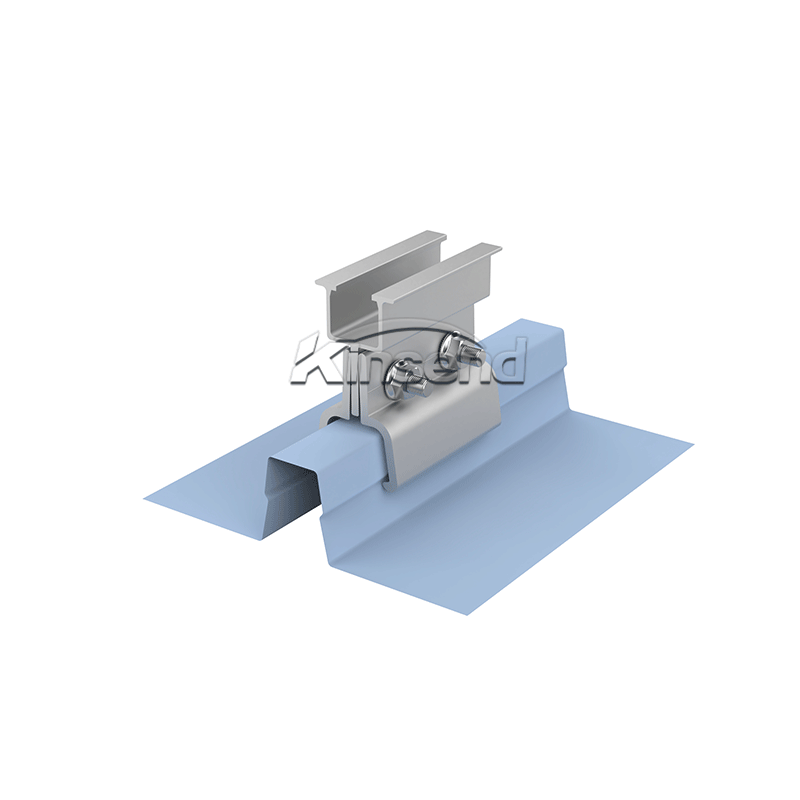

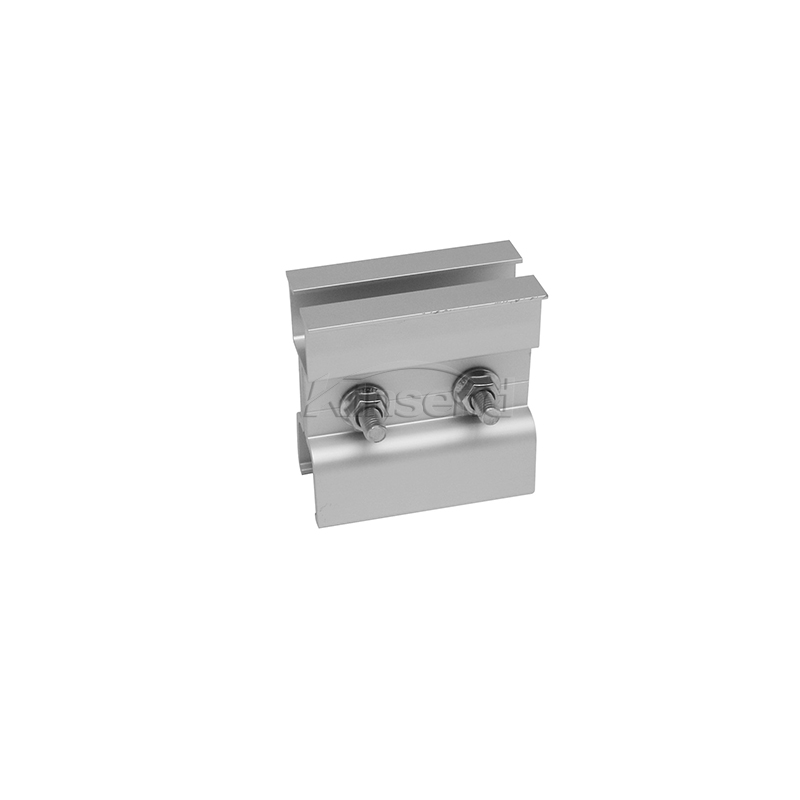

KLIP-LOK 406 Roof Hook , simply attached to the standing seams. Multiple types of clamps can be matched according to the Pitched roof mounting, so that it can be tightly clamped to ensure the firmness of the entire system. Aluminum hook & C block & Socket Head Screw. AL6005-T5 ,Clean Anodized with 12μm anodizing film thickness;  SUS 304 for fastener material    Directly connect with rail, side fixed Low fitting costs Every size of module array possible For all common rather distances Details     Related Products

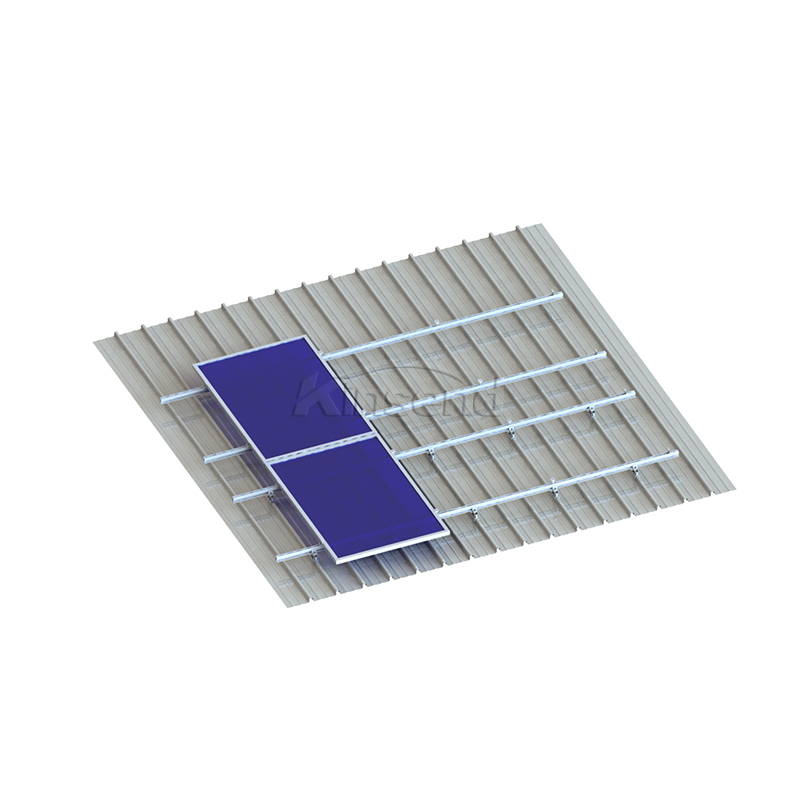

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet .Tin roof solution, is available for almost all type of tin roof. Product designed with high strength which can resist max wind speed at 60m/s. Main material is AL6005-T5 with average 12μm anodizing film. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.  Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters Details    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years
