Anodized Aluminum Solar Rooftop Mounting Rail

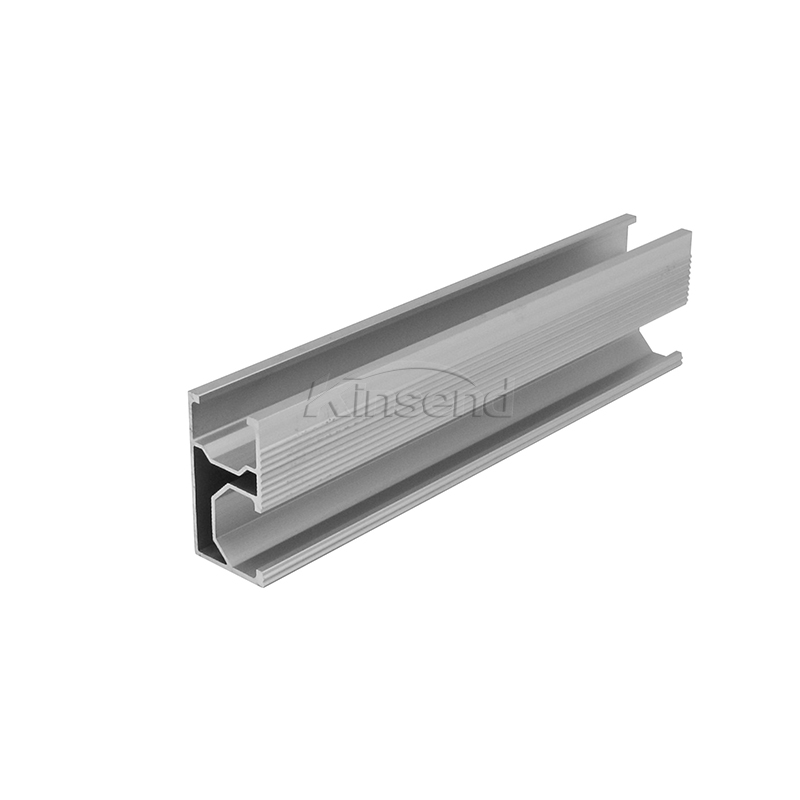

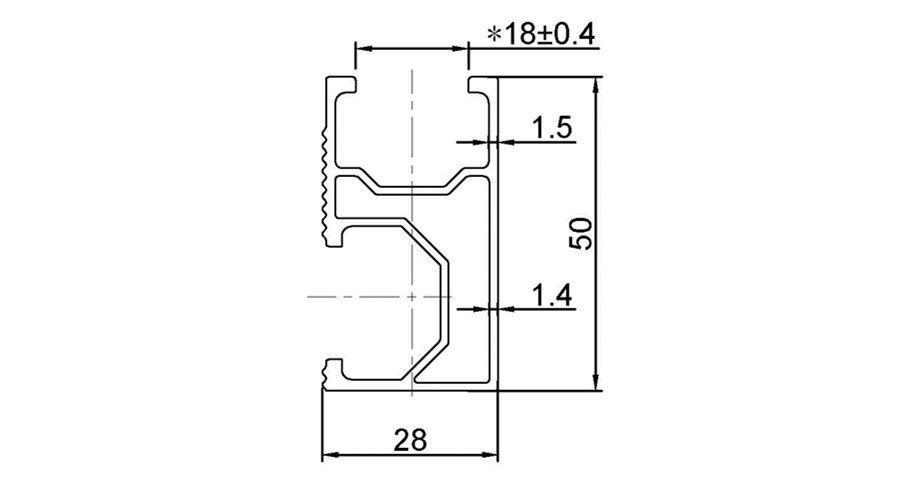

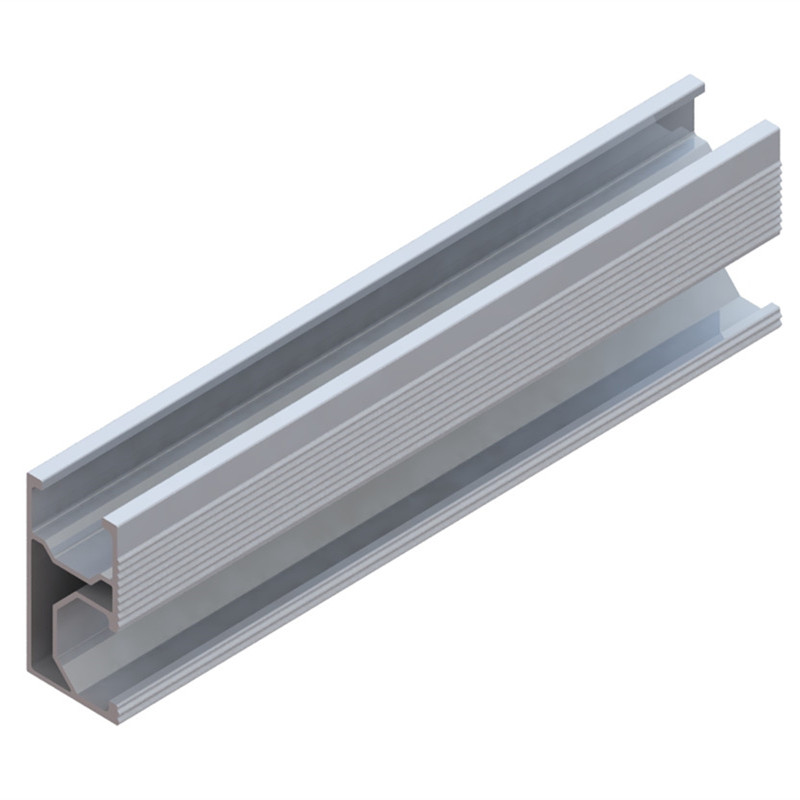

The JTD061 Solar Rail is made of material Aluminum AL6005-T5,suitable for the mounting of solar rooftop systems.

The CR3 Economic Solar Rail is made of material Aluminum AL6005-T5,suitable for the mounting of solar rooftop systems with small wind speed.

The Anodized Angle Aluminum, which works as a part for Tri-angle bracket, reinforcing beam. Full sides anodizing get a great anti-corrosion effect.

The quick installation rail does not require too many auxiliary installation accessories and is directly installed on the metal roof in close combination with the clamp

This guide rail has strong stability and a square structure in the middle, which reduces the overall weight of the guide rail and provides high safety.

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp. low cost and quick installation. Riveted or screwed onto raised corrugations. Every size of module array possible Simple and fast installation No Rails necessary Low material / Low fiting costs Details      Installation Site Trapezoidal and corrugated sheet metal    Installation Base Riveted or screwed onto raised corrugation    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 & Stainless steel     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

Kensend's lengthened type L foot hook is widely used in PV systems in Korea and Europe for trapezoidal metal tin roof PV mounting systems.

L feet brackets mainly applied to trapezoidal metal sheet roofs and corrugated metal sheet. It can be directly fixed on the roof beam with screw. Hanger bolt and Screw St6.3x80 apply to install on steel beam and Wooden beam. Making installation faster, competitive and reliable. Systems are fully compliant with international standards on wind & snow load. Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details
