Universal Stainless Steel Hook trapezoidal Metal Roof Mounting

Fixed trapezoidal Metal Roof Mounting System, easy to install.

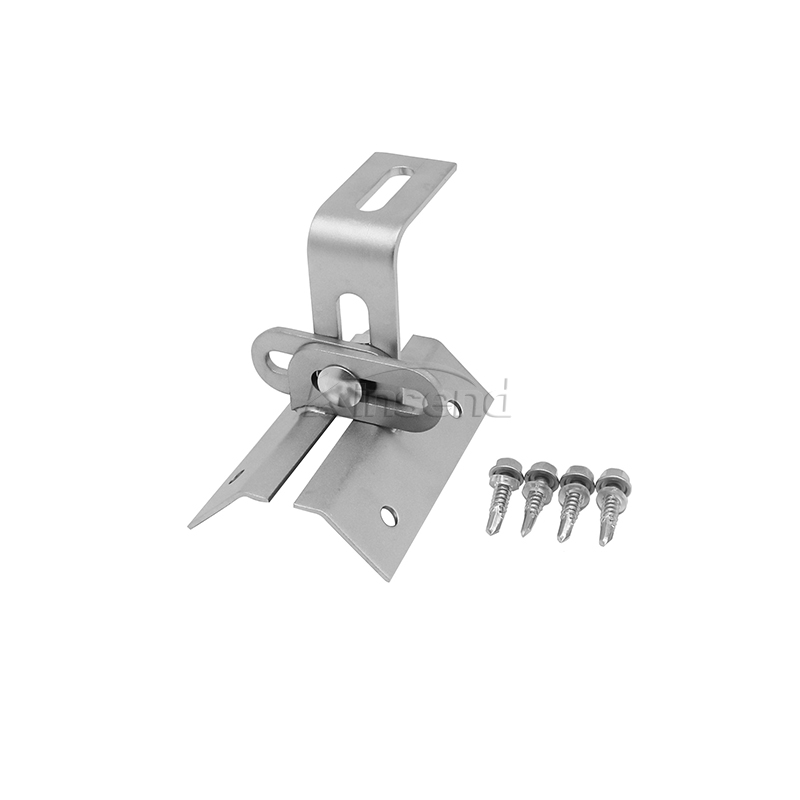

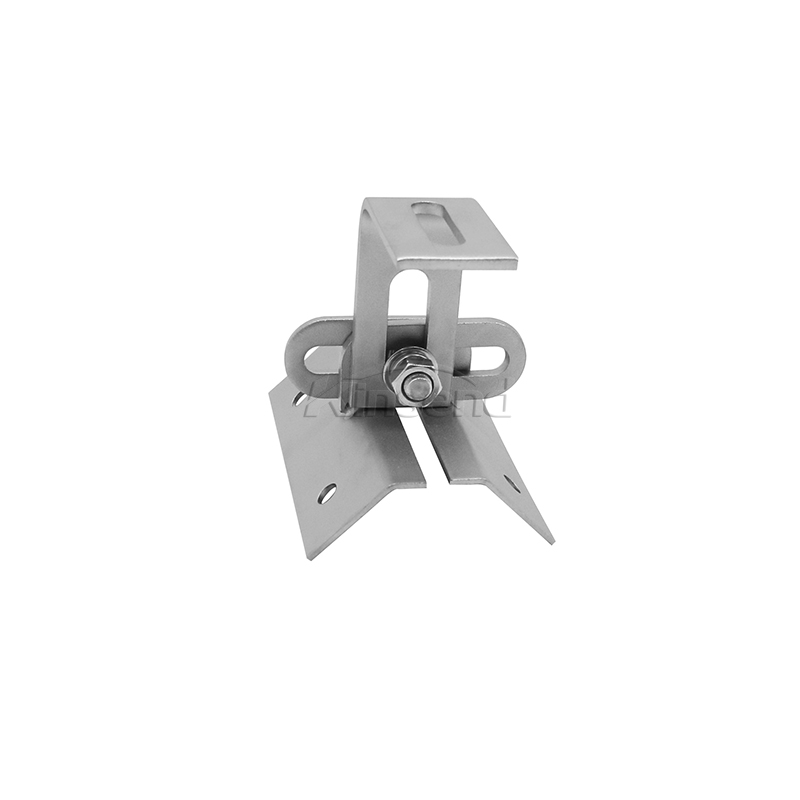

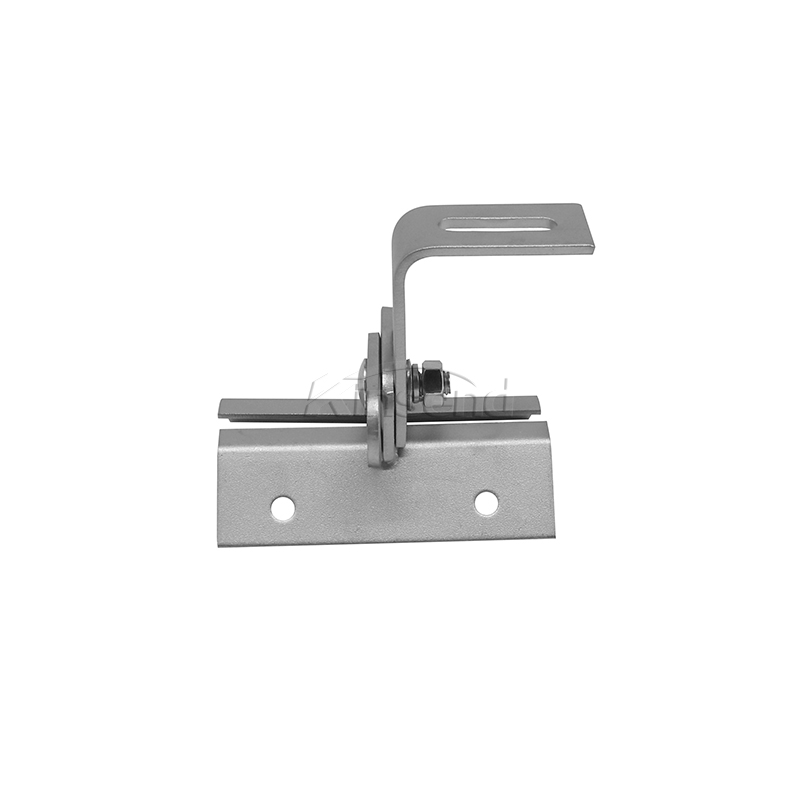

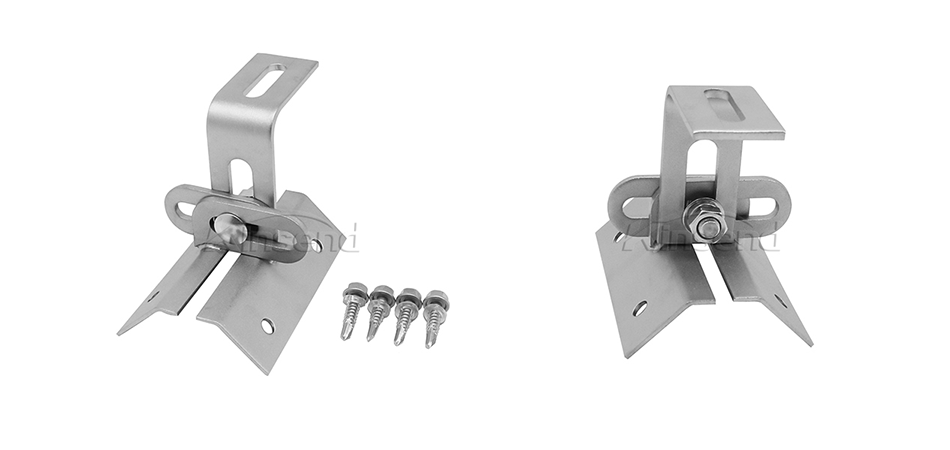

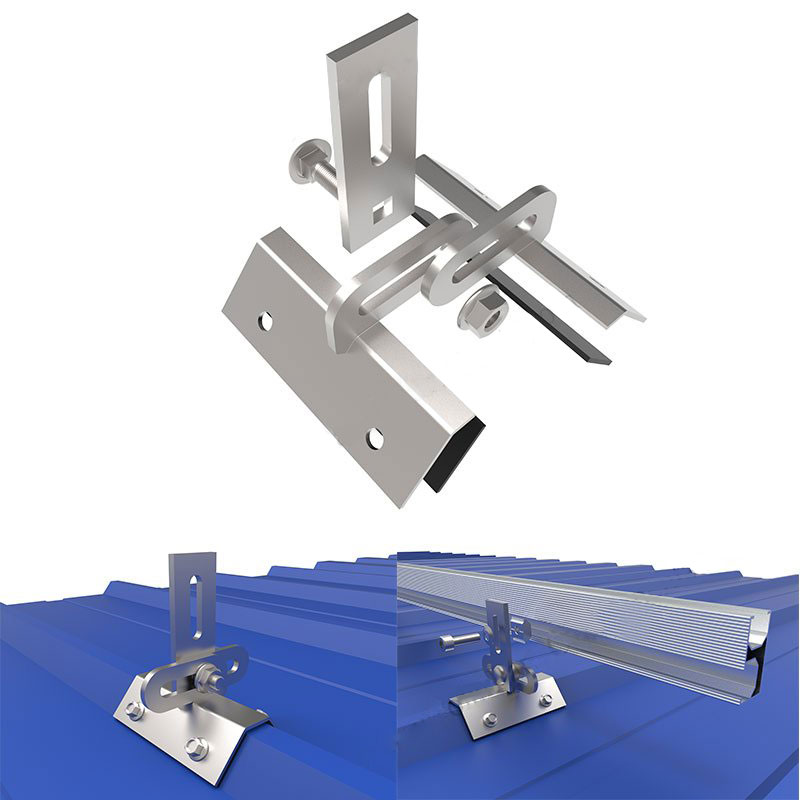

Universal metal tin roof clamp with strong flexibility and easy installation on trapezoidal type metal rooftop

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet .Tin roof solution, is available for almost all type of tin roof. Product designed with high strength which can resist max wind speed at 60m/s. Main material is AL6005-T5 with average 12μm anodizing film. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.  Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters Details    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

Fixed trapezoidal Metal Roof Mounting System, easy to install.

Aluminum mounting system is competitive for its high recycling value after years, and lower installation labor and maintaince cost.

Solar Ground Mounting System is typically applied on flat open field ground. Main components are high pre-assembled in our factory, which save lots of your on site installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.

The Universal Z Shape End Clamp is applicable for the mounting of 30-50mm framed or frameless solar panel, full sides anodizing.

Special greenhouse Agricultural Solar Mounting Systems allow crops to grow at a suitable temperature, increasing yields while allowing sunlight to be utilized. Farmers can fully exploit the sun energy for daily basic activities like irrigation, heating and lighting.  A solution with enough space, benefits to the machine work Excellent anti-corrosive performance Pre-assembled components, Customed shading rate     Installation Site Open Field Area, Above the planting Farmland    Installation Base Ground screw, ground clearance Over 1800mm Tilt angle Customized tilt angle Module orientation Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material      Material: Anodized aluminum 6005 T6 stainless steel 304, 410; Hot-dipped galvanized steel Q235B    Warranty / Duration  12 years/ More than 25 years
