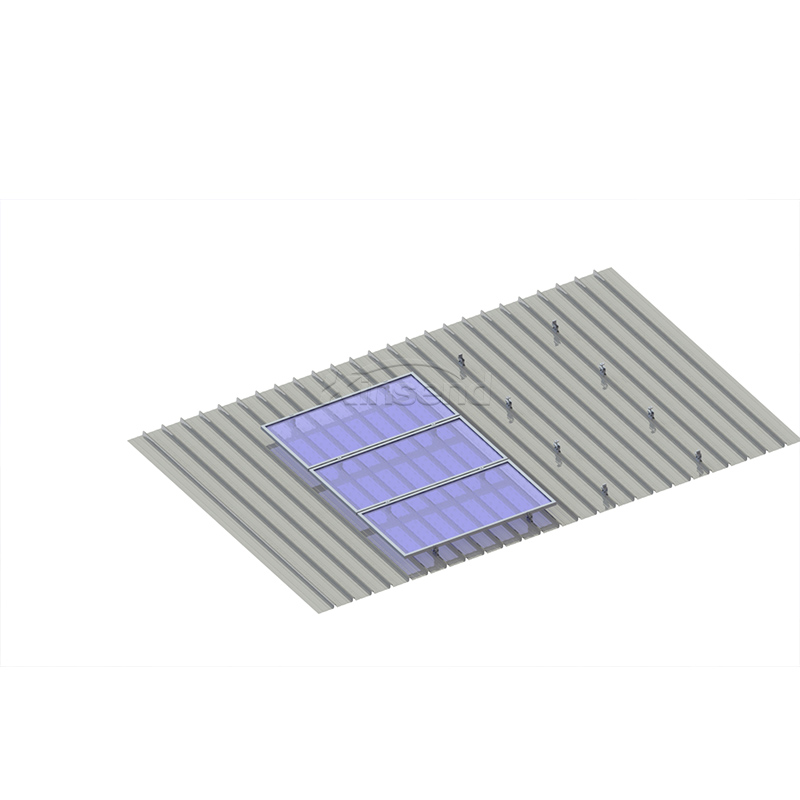

Standing Seam Solar Clamps For Metal Roof System

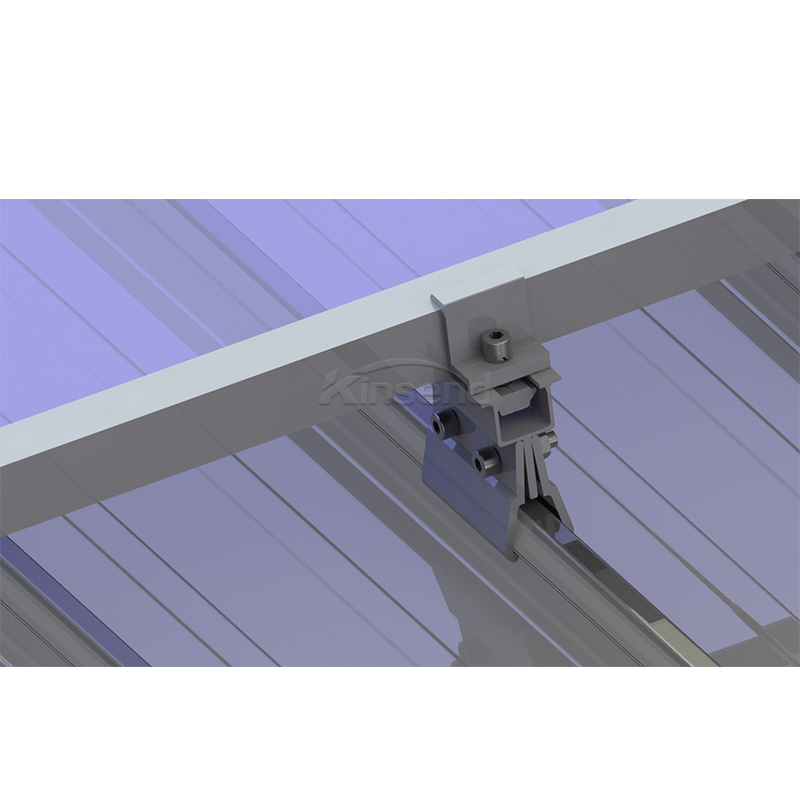

The standing seam roof clamps easy mounting on the folded seam rooftops. The clamps are designed to catch the standing seams effectively with ease. Clamps offer a secure fastening without penetrating the roof sheets, with maximum stability and minimum weight.

Kinsend's New ECO SYSTEM Is a more lightweight and easy to install system. Fix the 406 cliplock  on the rooftop metal plate and tighten the bolts. Fix the ECO rail on the 406 cliplock with Hex screw. PV module on the ECO Rail with mid clamps and end clamps.

The lightweight rail has a price advantage and is easy to install. Combined with Standing Seam Clamps, it ensures installation and safety,

KLIP-LOK 700 Roof Hook , The standing seam roof clamps make mounting on folded seam roof particularly easy.

KLIP-LOK 700 Roof Hook

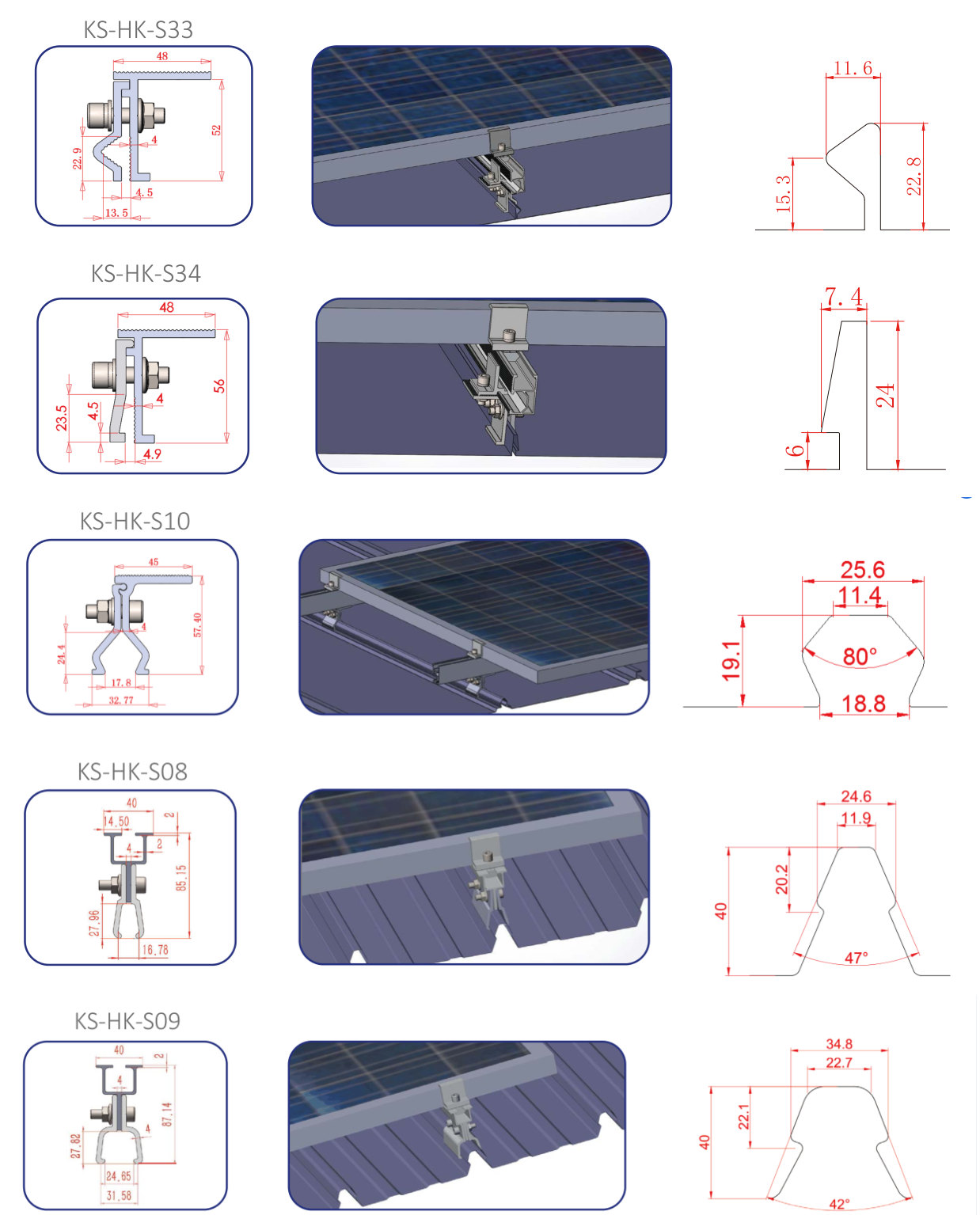

KLIP-LOK 406 Roof Hook , simply attached to the standing seams. Multiple types of clamps can be matched according to the Pitched roof mounting, so that it can be tightly clamped to ensure the firmness of the entire system. Aluminum hook & C block & Socket Head Screw. AL6005-T5 ,Clean Anodized with 12μm anodizing film thickness;  SUS 304 for fastener material    Directly connect with rail, side fixed Low fitting costs Every size of module array possible For all common rather distances Details     Related Products

The main material of the pv ground mounting system is high-purity aluminum alloy, which is light in weight, pre-assembled components are simple structural design, effectively reducing the onsite  cost. The support surface is anodized, with high corrosion resistance. The ground system with ground screws foundation has strong environmental adaptability and can be widely used in power station solar ground projects in different terrains. High pre assembly reduces on-site installation difficulties encountered. Light material, easy for install & delivery. Suitable for terrains environmental High pre-assembled in factory, save your on site cost & time 12 years warranty and 25 years service life Component List    Installation Site Open Field Area_Aluminum ground mounting system    Installation Base Ground screws and concrete foundations optional Tilt angle 0°- 45°    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years
