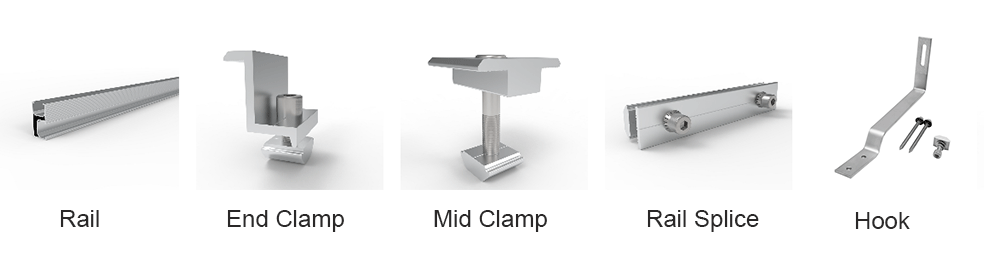

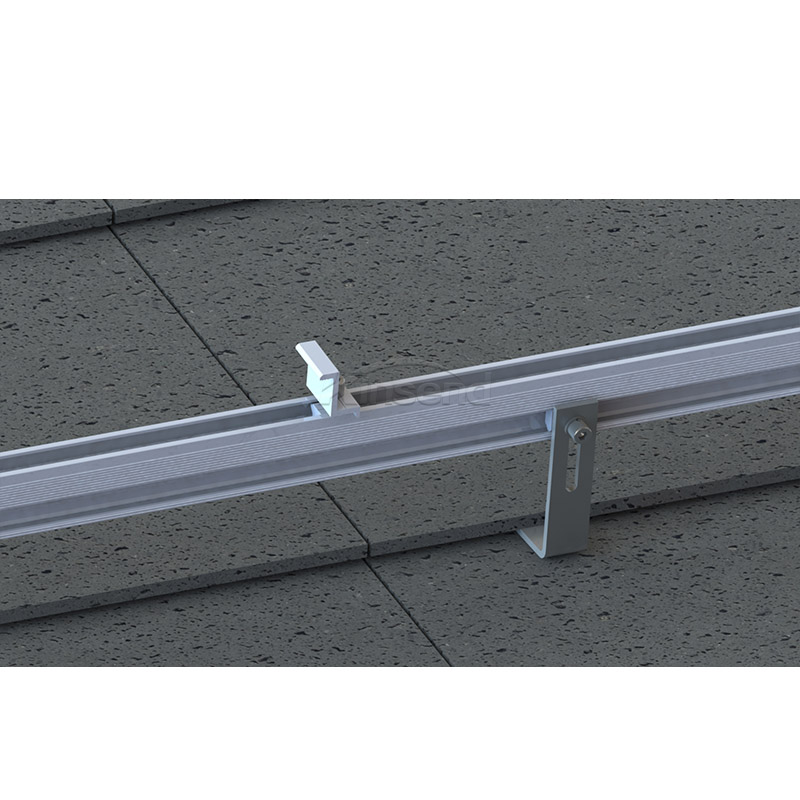

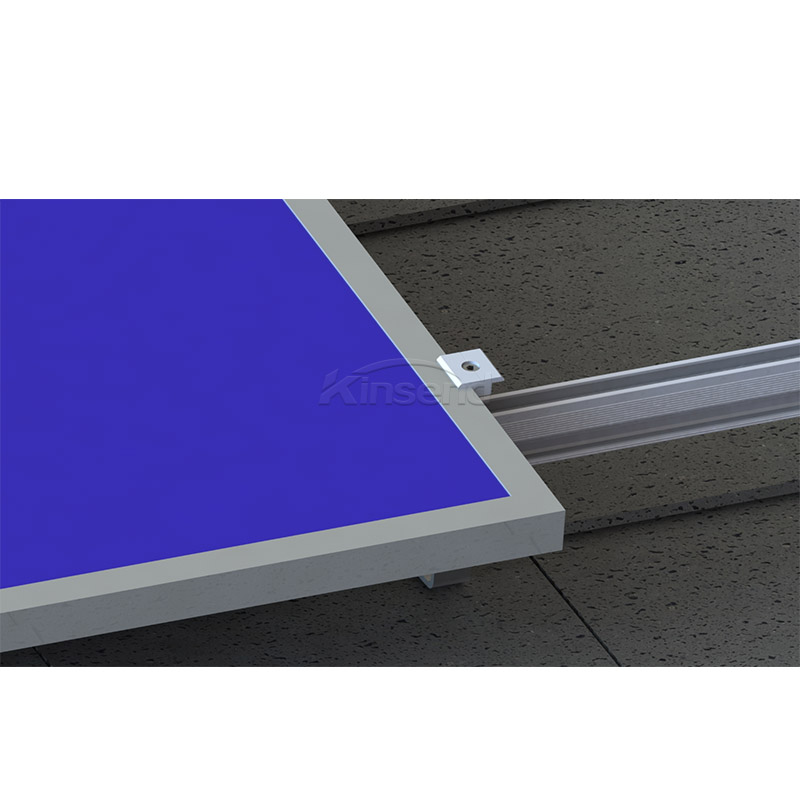

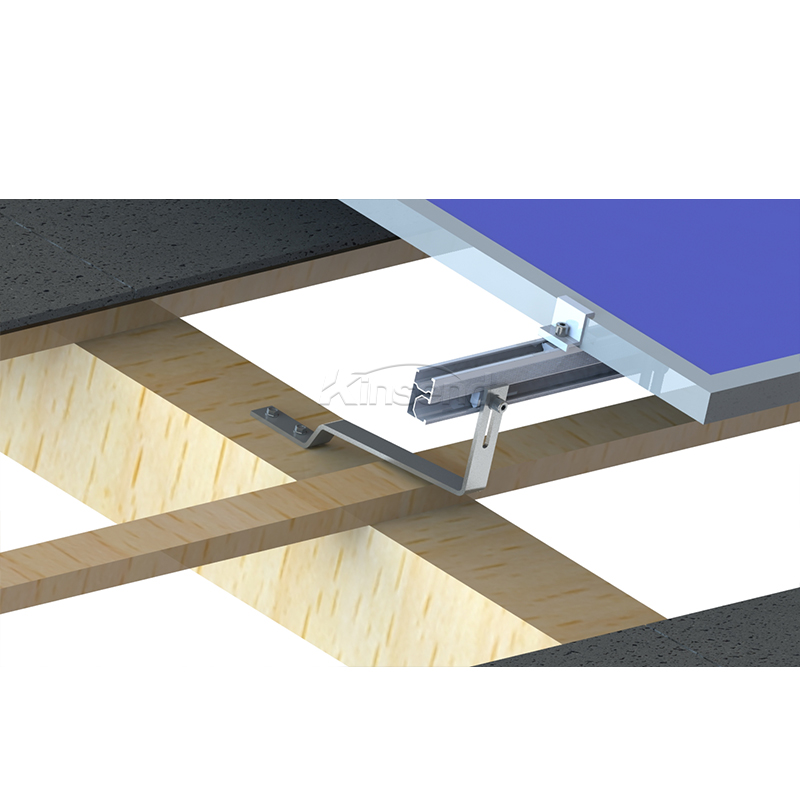

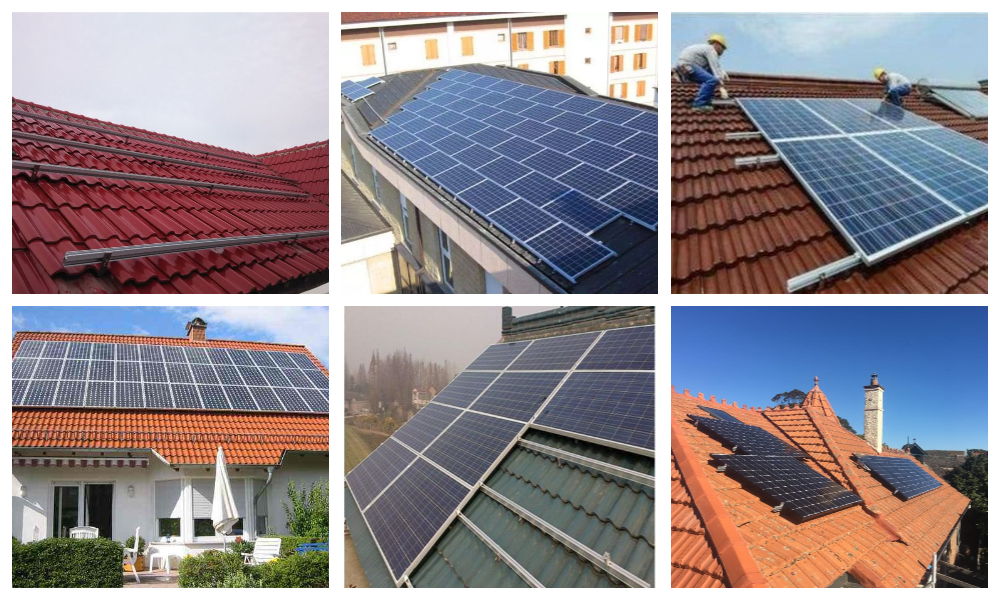

Slate Tile Roof Mounting System

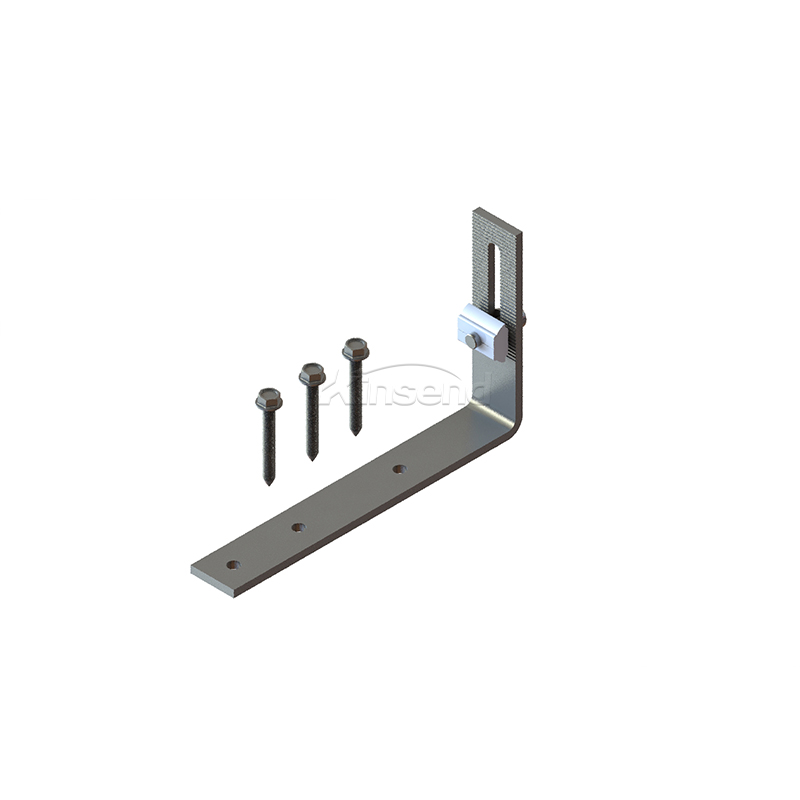

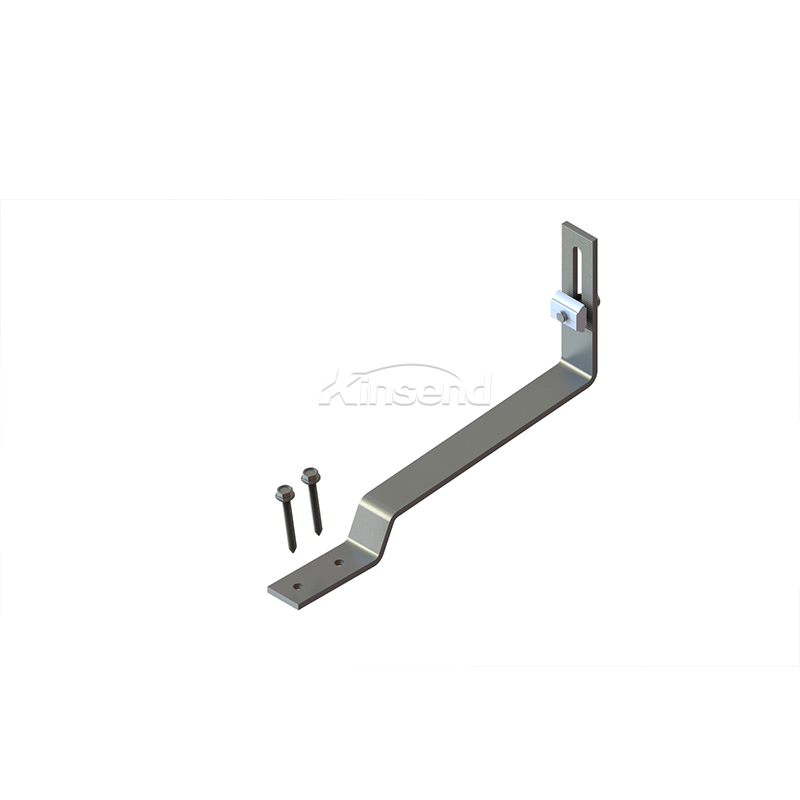

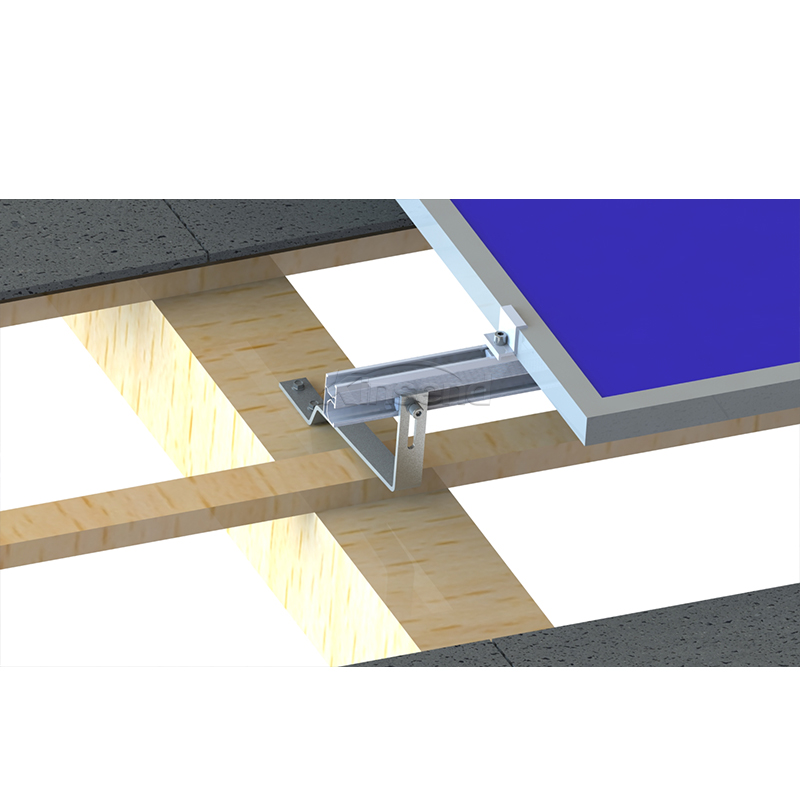

Use universal stainless steel roof hook for tile roof rack mounting system，stainless roof hook installation with Self-tapping screw M6.3*80mm

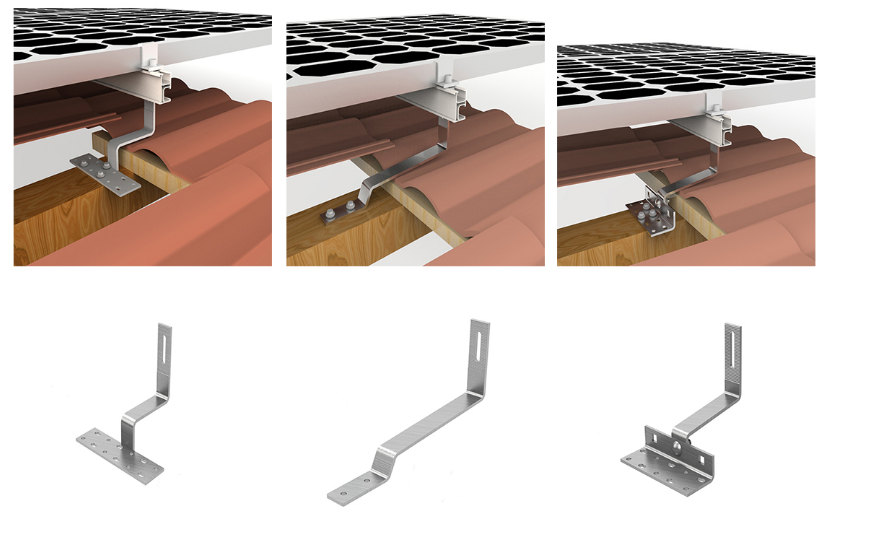

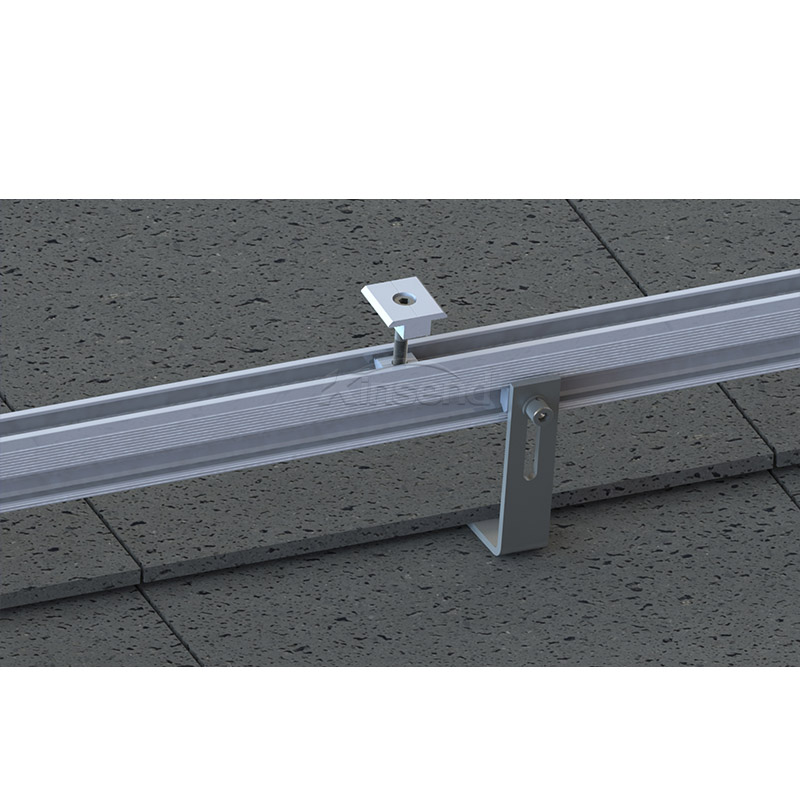

Solar Stainless Steel Hook ,Custom-made solar tile hooks based on tile specifications,They have adjustable and fixed tile hook type for choice.

Solar ground ramming pile mounting system is applied to residential, commercial and utility scale PV projects on non-sandy ground. It suits both framed or frameless solar panel installations, especially on uneven terrain. It works for level ground too.

Metal Roof Solar Panel Mount Tripod Angle Aluminum It can be installed on metal roof clamp or penetrate into concrete. Highly pre-assembly, easy installation Perfect also for small systems of 1,2,4 or 8 modules, Fixed angle, adjustable angle both available. Highly pre-assembly, easy installation Fixed angle, adjustable angle both available Tilt angle: 5-45° Strong structure with most competitive price    Installation Site Flat Roof or inclined metal/tin roof Tilt angle 5-45° Economic layout Landscape/portrait , Perfect also for small systems of 1,2,4 or 8 modules    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

The Kinsend KS-HK-S09 roof clamps are easily mounting on the metal klip lok 700 rooftop. The clamps are designed to catch the standing seams effectively with ease.

The Roman Tile Roof Hook is exclusively designed for the solar panel mounting on roman tile roof. Just few steps with 4 components, easy to install.
