Helical Ground Screw for Solar Project

The Adjustable Galvanized Ground Screw is ideal as a base for solar project installed on uneven open ground.

Hot Sale Ground screw with flange, the flange is convenient and easy to connect with the solar bracket from upward。

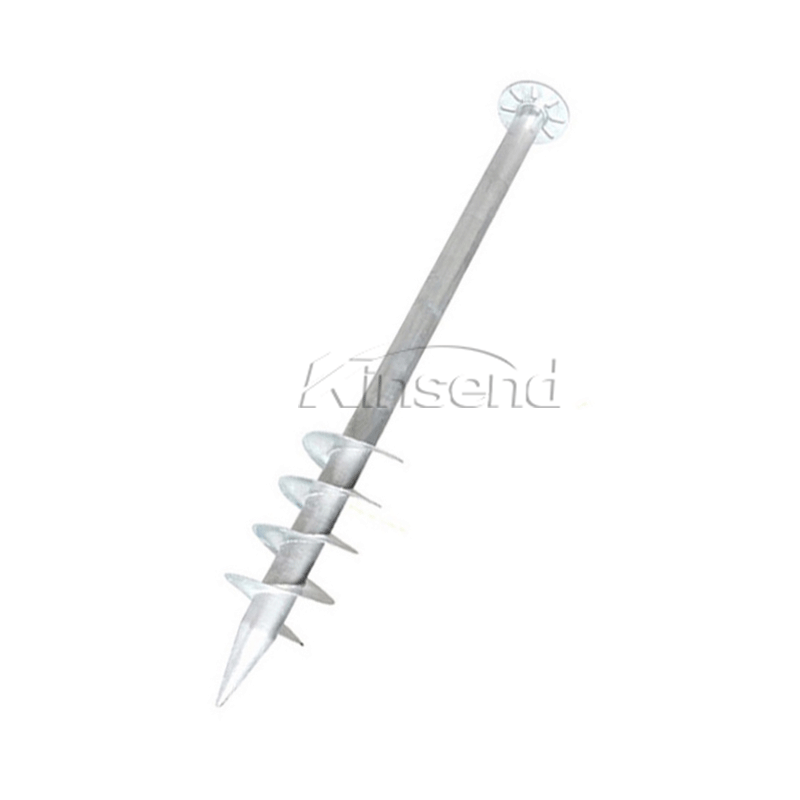

Helical ground screw is screw equipped with bigger blades than general one, which provides better pulling resistance performance, suitable for soft clay.

KLIP-LOK 406 Roof Hook , simply attached to the standing seams. Multiple types of clamps can be matched according to the Pitched roof mounting, so that it can be tightly clamped to ensure the firmness of the entire system. Aluminum hook & C block & Socket Head Screw. AL6005-T5 ,Clean Anodized with 12μm anodizing film thickness;  SUS 304 for fastener material    Directly connect with rail, side fixed Low fitting costs Every size of module array possible For all common rather distances Details     Related Products

The Solar Ground Pile Mounting System uses Pile drivers to drive C-beams, H-beams or other structural steel directly into the Ground. Installation is simple. This type of installation is widely used in many soil plots.

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet .Tin roof solution, is available for almost all type of tin roof. Product designed with high strength which can resist max wind speed at 60m/s. Main material is AL6005-T5 with average 12μm anodizing film. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.  Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters Details    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

The CR3 Economic Solar Rail is made of material Aluminum AL6005-T5,suitable for the mounting of solar rooftop systems with small wind speed.

The Ballasted Bracket for flat concrete rooftop is perfect for residential or commercial flat rooftops, withstand heavy wind speed.
