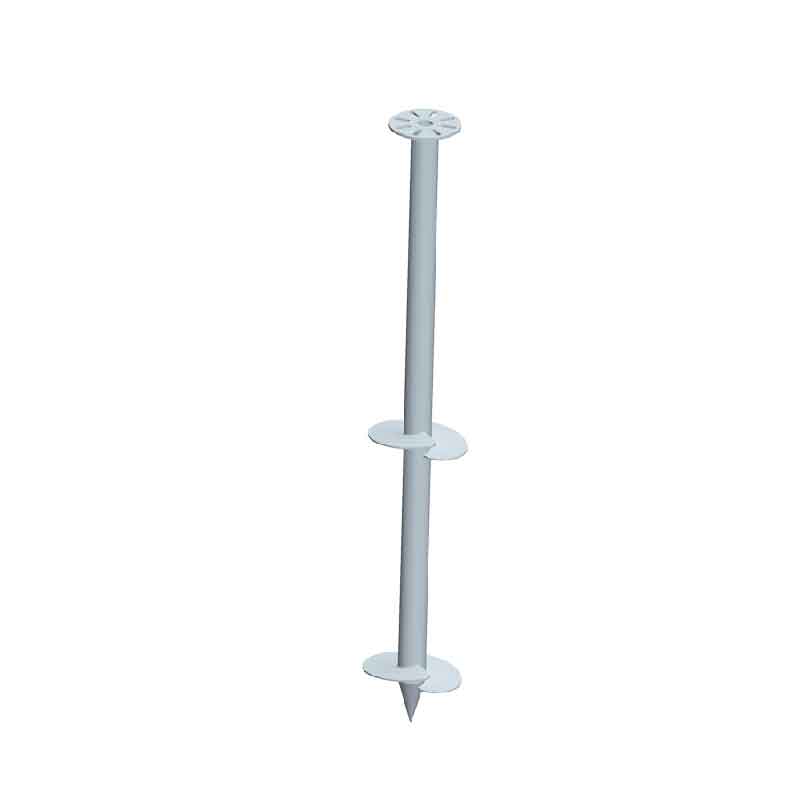

 Helical Ground Screw for Solar Project

Helical Screw
Helical Screw Helical Screw

Helical Ground Screw for Solar Project

Helical ground screw is screw equipped with bigger blades than general one, which provides better pulling resistance performance, suitable for soft clay.

  • Item no.:

    KS-F76-B2T3-1600

  • Payment:

    T/T,L/C

  • Product origin:

    China

  • Color:

    Silver

  • Shipping port:

    Xiamen

  • Lead Time:

    10 days
Inquire now
  • Product Detail

Helical ground screw is screw equipped with bigger blades than general one, which provides better pulling resistance performance, suitable for soft clay. Comparing with concrete base, ground screw features lower cost, shorter construction period,environment friendly,allweather workable and resuable.




Friendly to environment

Perfect pulling resistance performance

80-100um galvanization to anti-corrosive

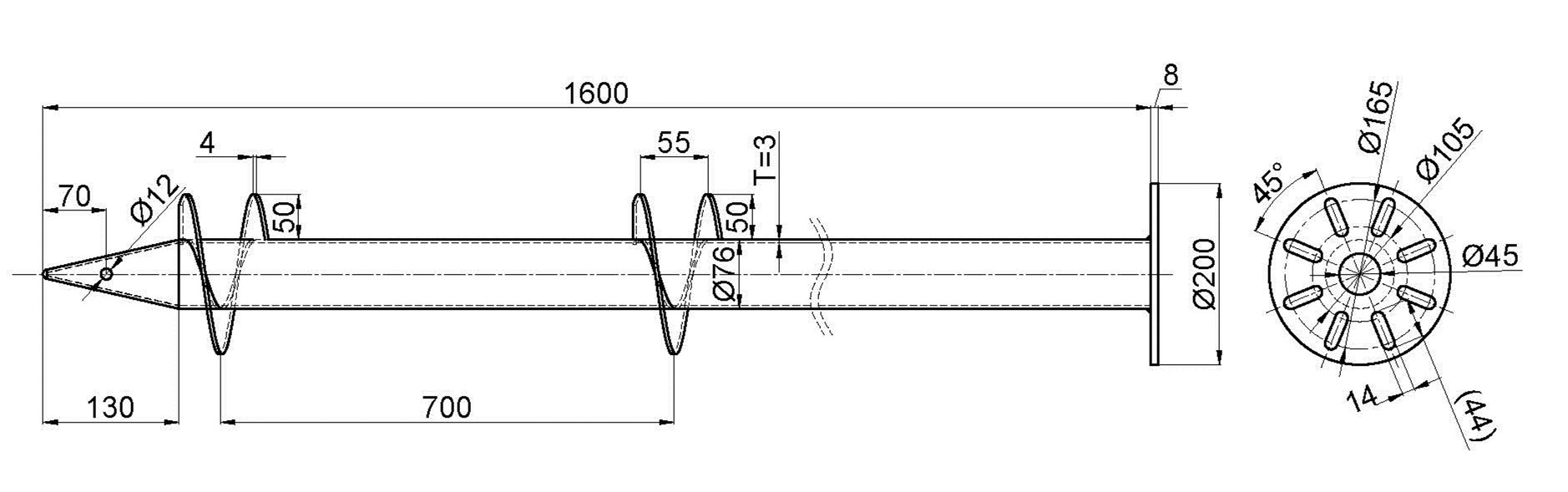

Drawing





Product Name Helical Ground Screw With Flange
Material Steel Q235B
Anti-corrosive Hot-dip Galvanizing (DIN EN ISO1461)
Diameter of Pipe 76mm
Pipe Thickness 3mm (2.5mm/3.5mm/3.75mm/4mm/5mm)
Flange Diameter 200mm/220mm
Length of Pipe 1600mm (as per customers requirement)
Blade Number 2 Blades/4 Blades
Color   Silver
Warranty   10 years warranty
