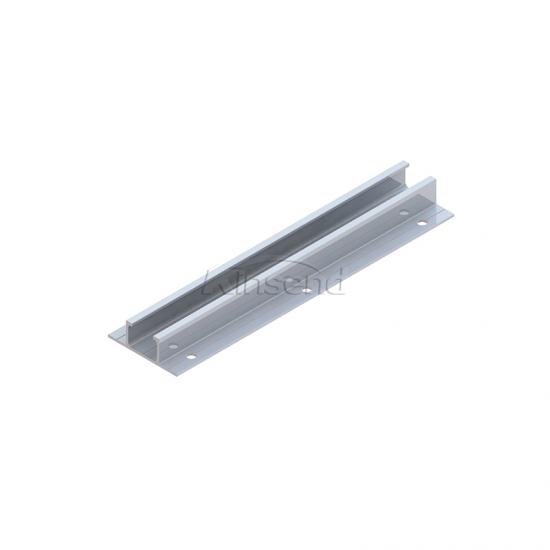

Mini Mounting Rails For Solar Metals Mount

Payment:
T/T,L/C
Product origin:
China
Color:
Silver, Black
Shipping port:
Xiamen, China
Lead Time:
7-14 days

Inquire now

Categories

New Products

Product Detail

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp. low cost and quick installation. Riveted or screwed onto raised corrugations.

Every size of module array possible
Simple and fast installation
No Rails necessary
Low material / Low fiting costs

Details

Installation Site	Trapezoidal and corrugated sheet metal
Installation Base	Riveted or screwed onto raised corrugation
Max Wind Speed	< 60m/s
Snow Load	< 80cm
Standards	AS/NZS 1170 &JIS C 8955-2011
Material	Al6005-T5 & Stainless steel
Anti-corrosive	Anodized
Warranty / Duration	12 years/ More than 25 years
